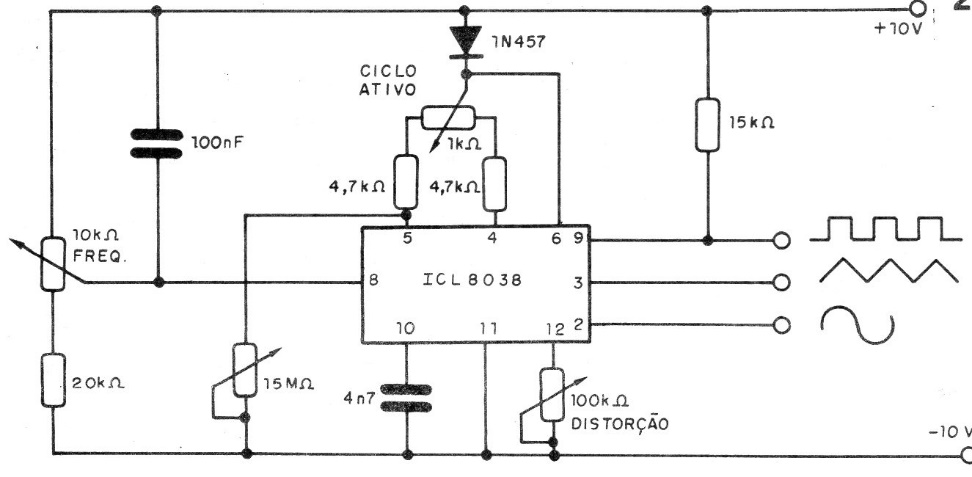

This is the basic configuration of a function generator with the 8038 integrated circuit (uncommon today). The circuit was found in a 1992 documentation and can provide signals of 3 waveforms up to 20 kHz. The circuit is powered by 12 V and has symmetry adjustments.
