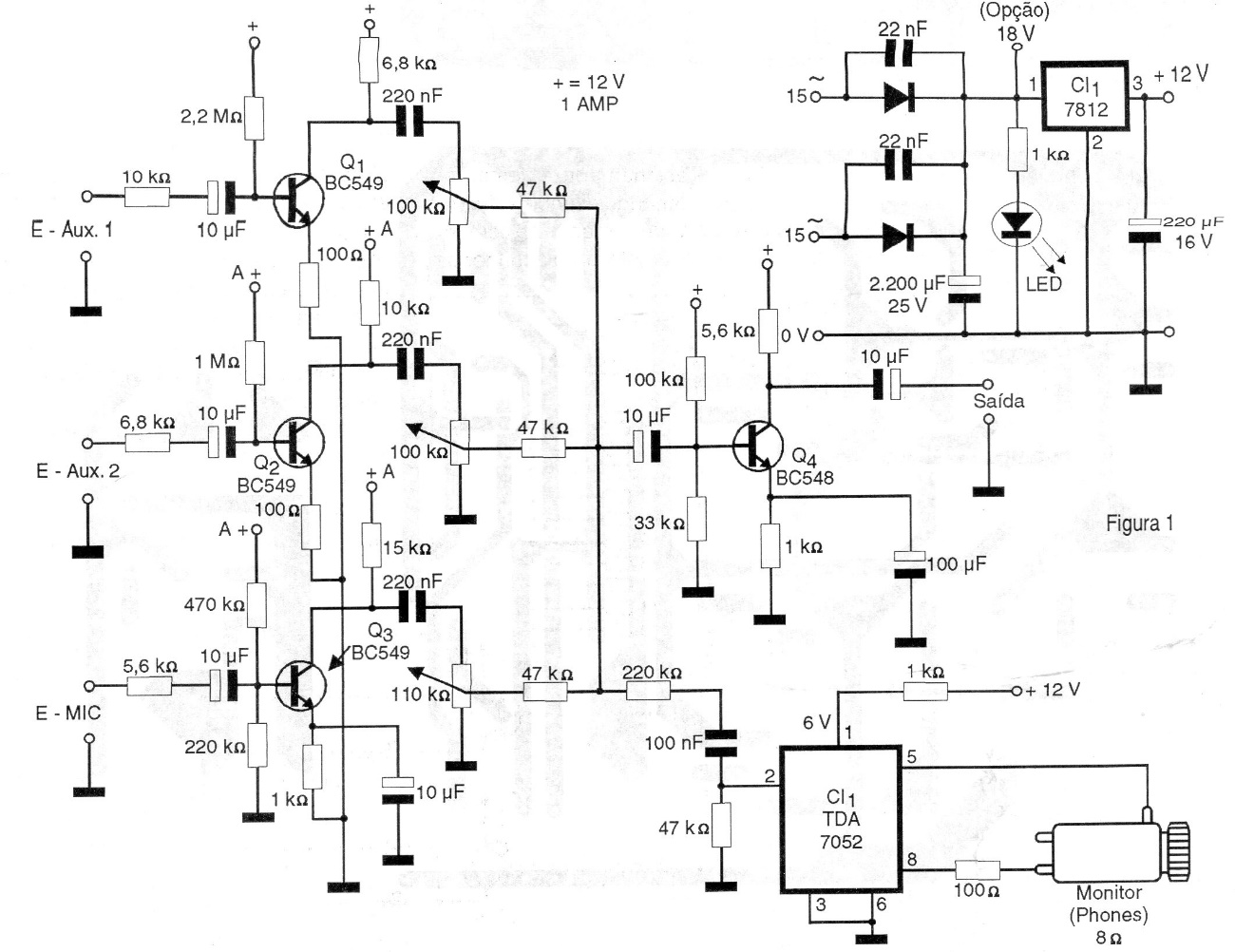

This circuit that uses components that are still very common on the market was obtained in a 1997 documentation. The circuit is powered by 12 V with a regulated source with 15 V input. Good filtration is very important to avoid snoring. The signal input and output cables must be shielded.
