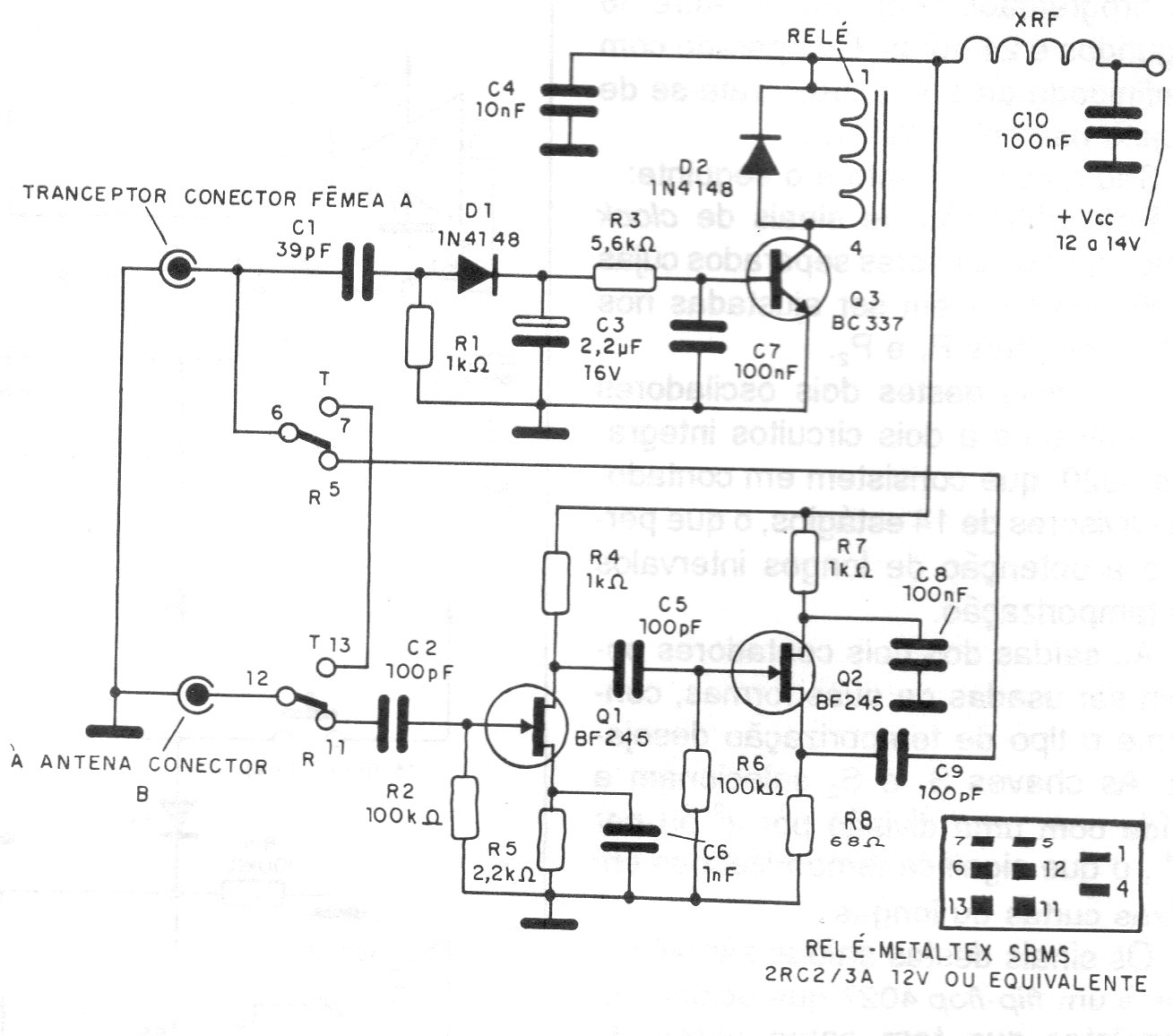

This circuit consists of a booster for signals in the 27 MHz band. We found the circuit in a 1994 publication. It includes a switch circuit that turns off the amplifier when transmitting. The circuit is powered by voltages from 12 to 14 V.
| Clique na imagem para ampliar |
