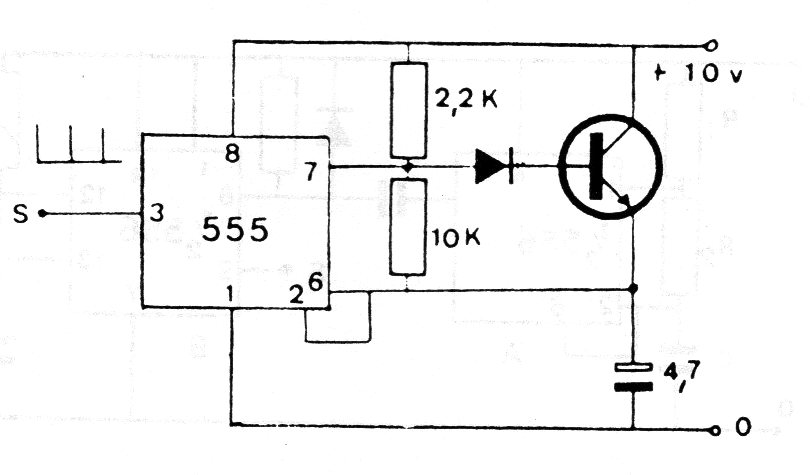

This circuit generates short pulses. The transistor can be a 2N2222 or BC548 and the frequency is given by the resistors and the capacitor that can be changed.
| Clique na imagem para ampliar |
Pulse Generator 555 (CB17244E)
- Details
- Written by: Newton C. Braga
