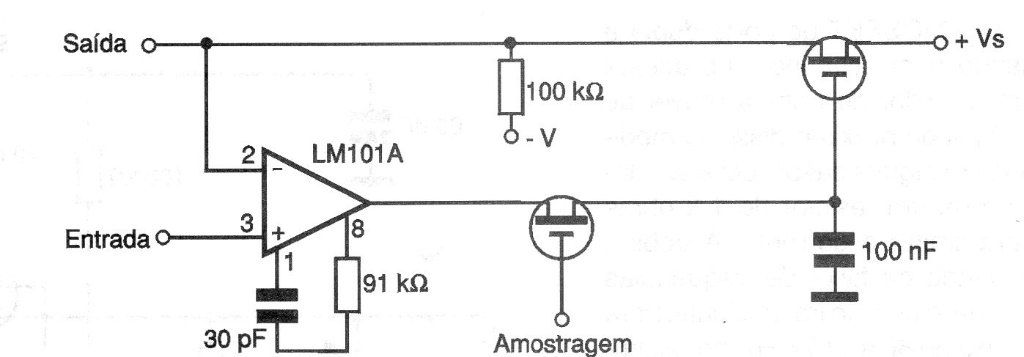

This circuit is used in analog-to-digital converters based on a voltage that is sampled and is stored in a capacitor. The circuit can be designed based on more modern operational amplifiers since this configuration is from 2001 documentation.
| Clique na imagem para ampliar |
