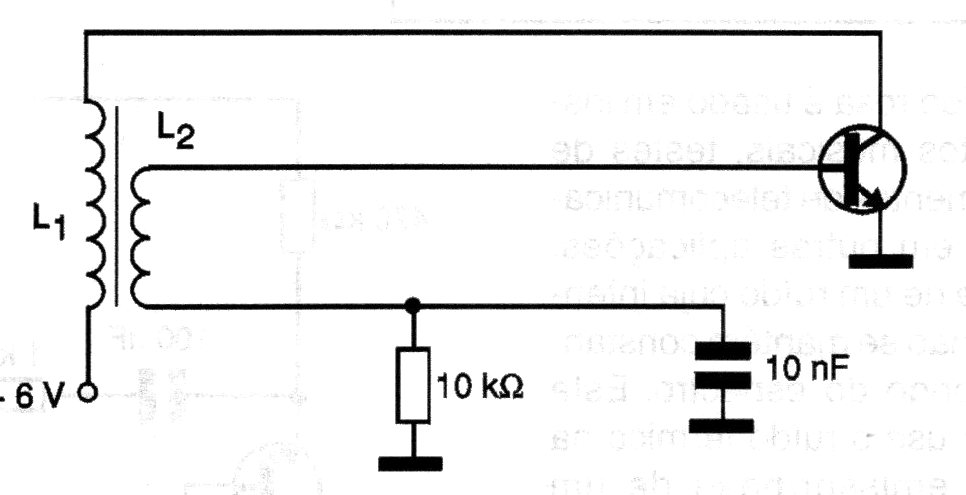

The transistor can be a BC548 and the coil has the following characteristics for 1 MHz. L1 has 80 turns of wire 28 in a ferrite rod and L2 of 30 and 40 turns.
| Clique na imagem para ampliar |
Blocking Oscillator (CB17612E)
- Details
- Written by: Newton C. Braga
