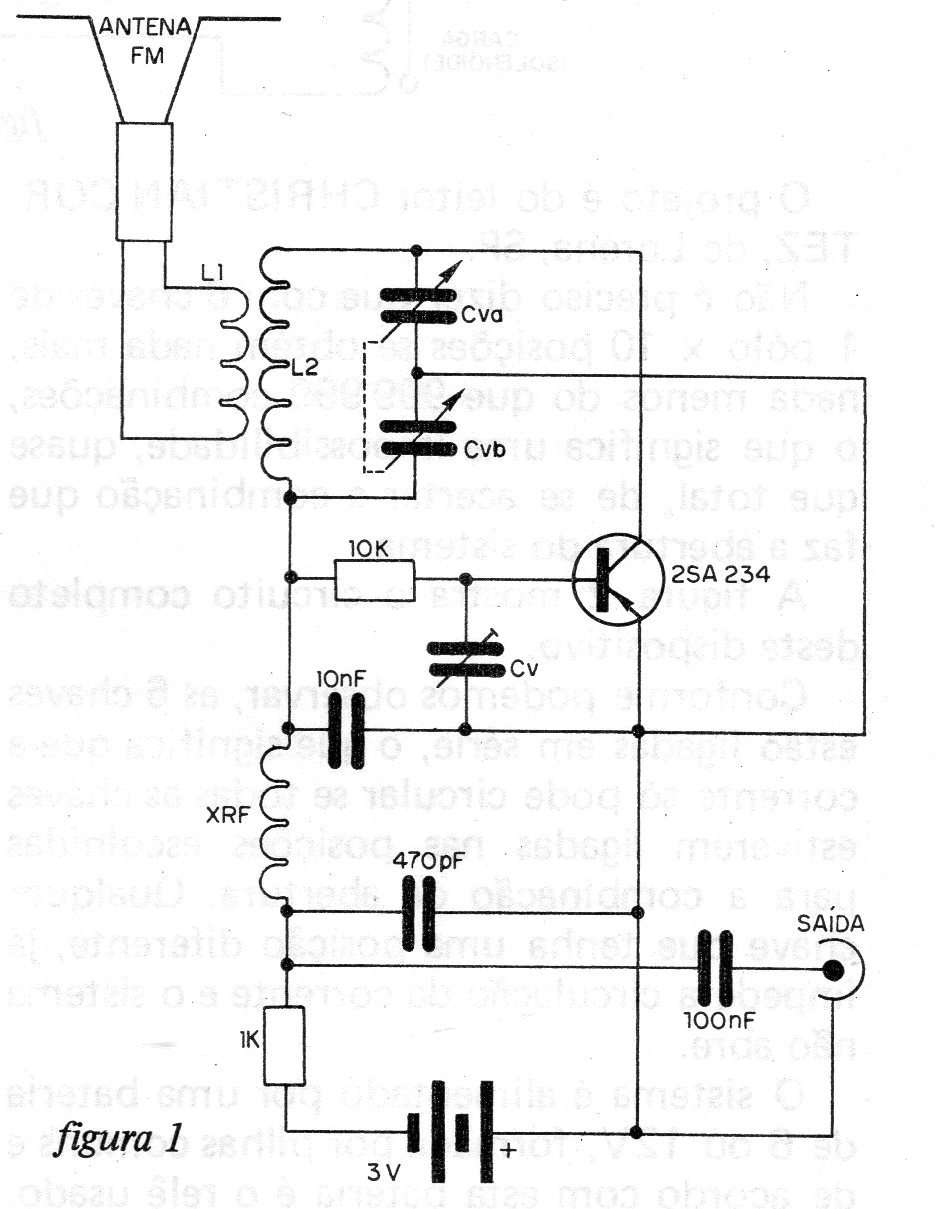

This very simple circuit was found in a 1977 documentation. The L1 coil has 3 turns of AWG wire 22 to 26 in form of 1 cm without core over L2 which has 4 turns of the same wire. The transistor can be the BF494 and the output must be connected to the input of an amplifier.
