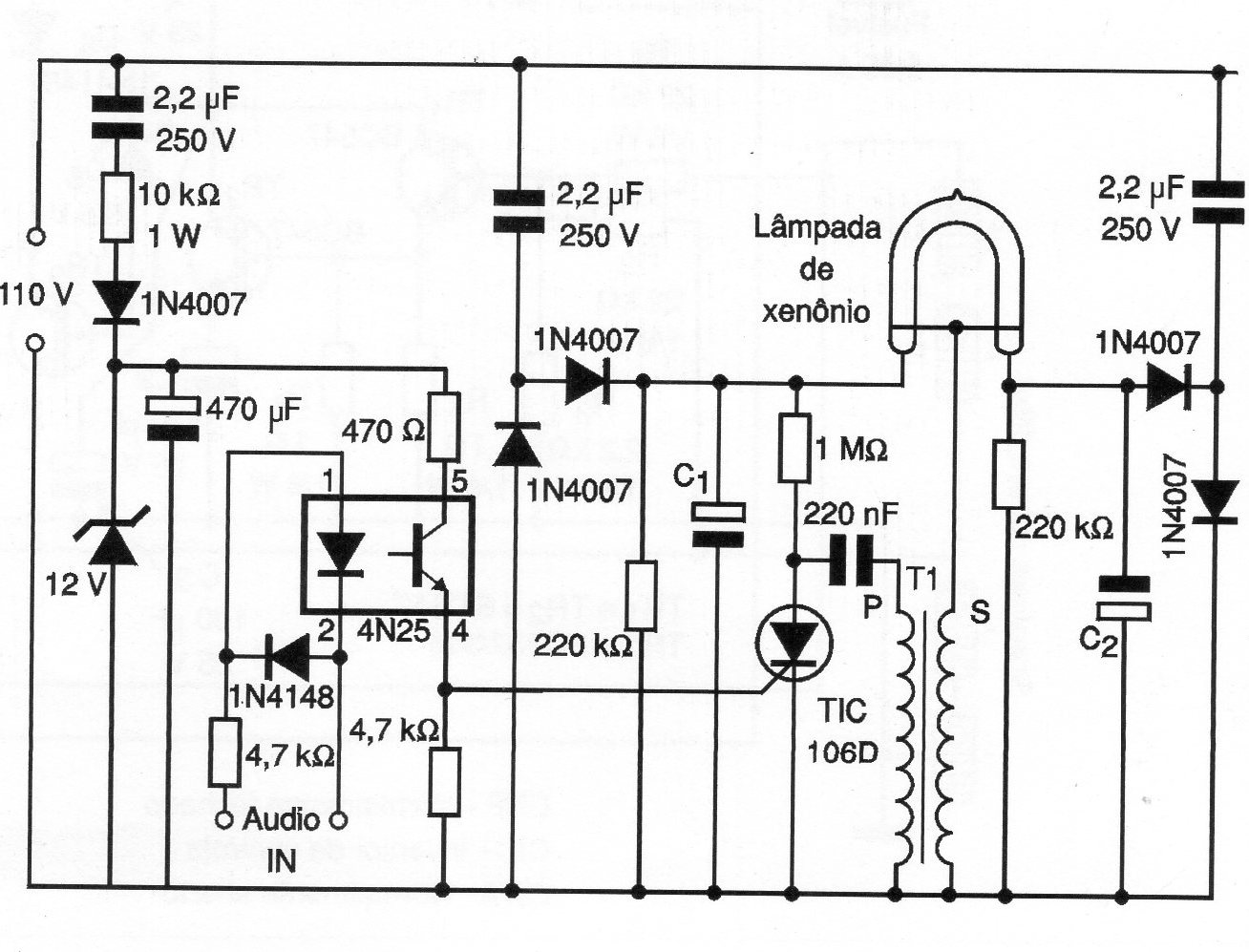

This xenon strobe light was found in a 2001 documentation and can be easily assembled today, as all the components used are still common. The high voltage transformer can be of commercial type or wound in a ferrite consisting of 40 to 100 turns of wire 28 in the primary and 400 to 1000 turns of wire 32 in the secondary.
| Clique na imagem para ampliar |
