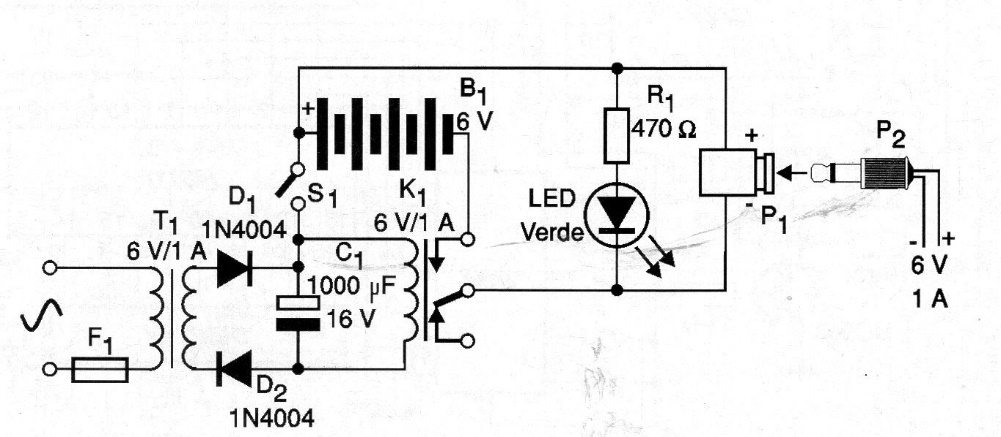

This circuit serves to prevent devices powered by 6 V from being left with a power cut. The circuit is used to power small applications and has a set of batteries that is connected when the power is cut off. The batteries must be in accordance with the current required by the powered load.
| Clique na imagem para ampliar |
