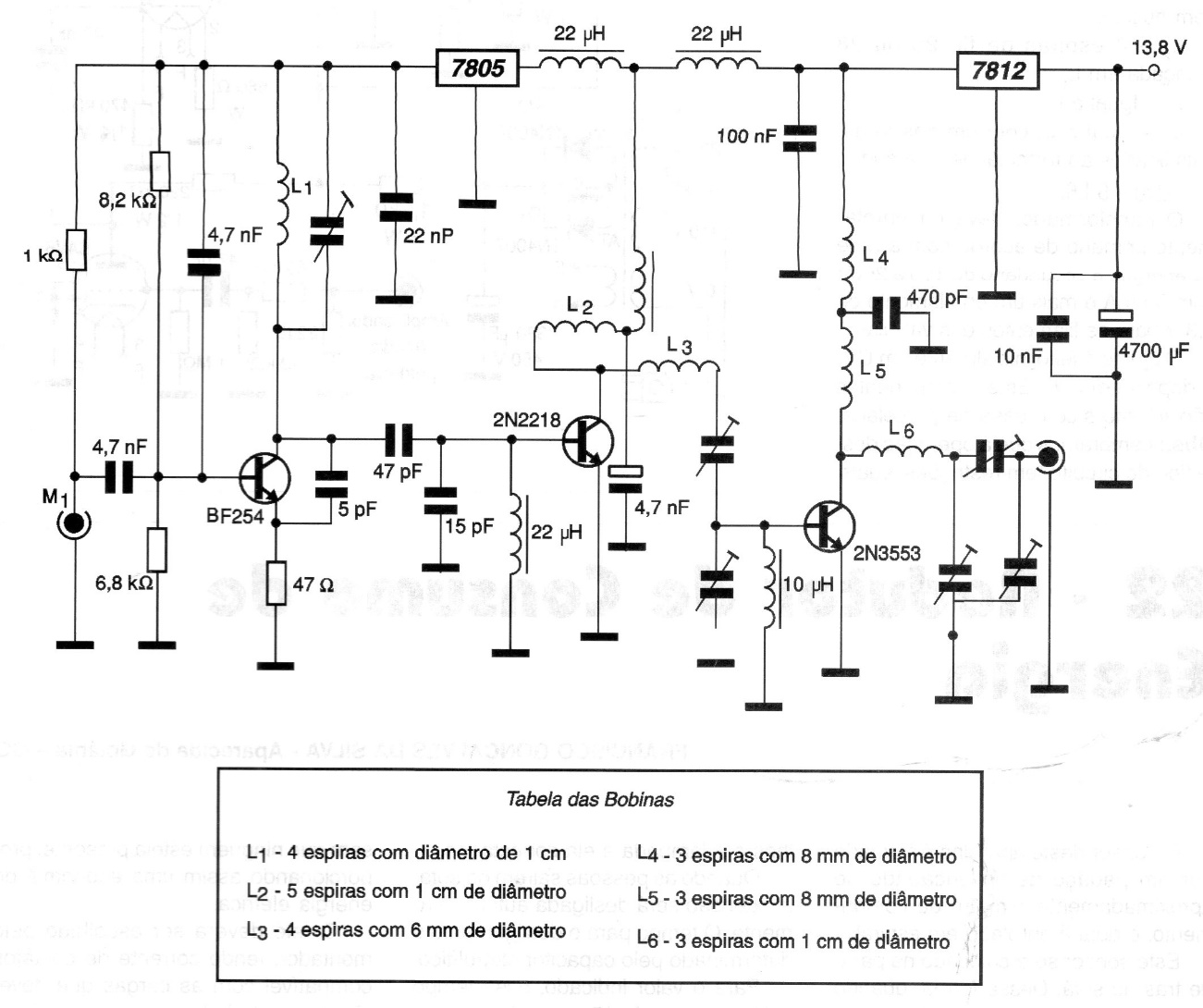

This circuit was found in a 2002 documentation. The RF output power transistor must be mounted on a heatsink and the voltage regulator 7812 as well. The details of the coils that have a shape of 1 cm without core are given in the table next to the diagram.
| Clique na imagem para ampliar |
