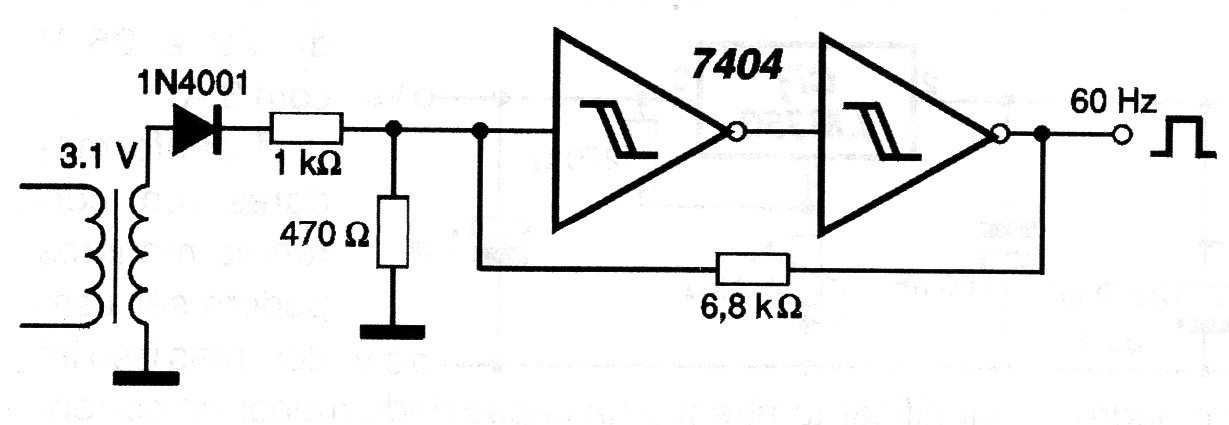

This circuit, which appears in direct applications on the website or as part of other articles, uses a TTL inverter trigger to obtain a 60 Hz signal from the power grid. The circuit can be used as a clock for digital instruments, stopwatches, and watches.
.
| Clique na imagem para ampliar |
