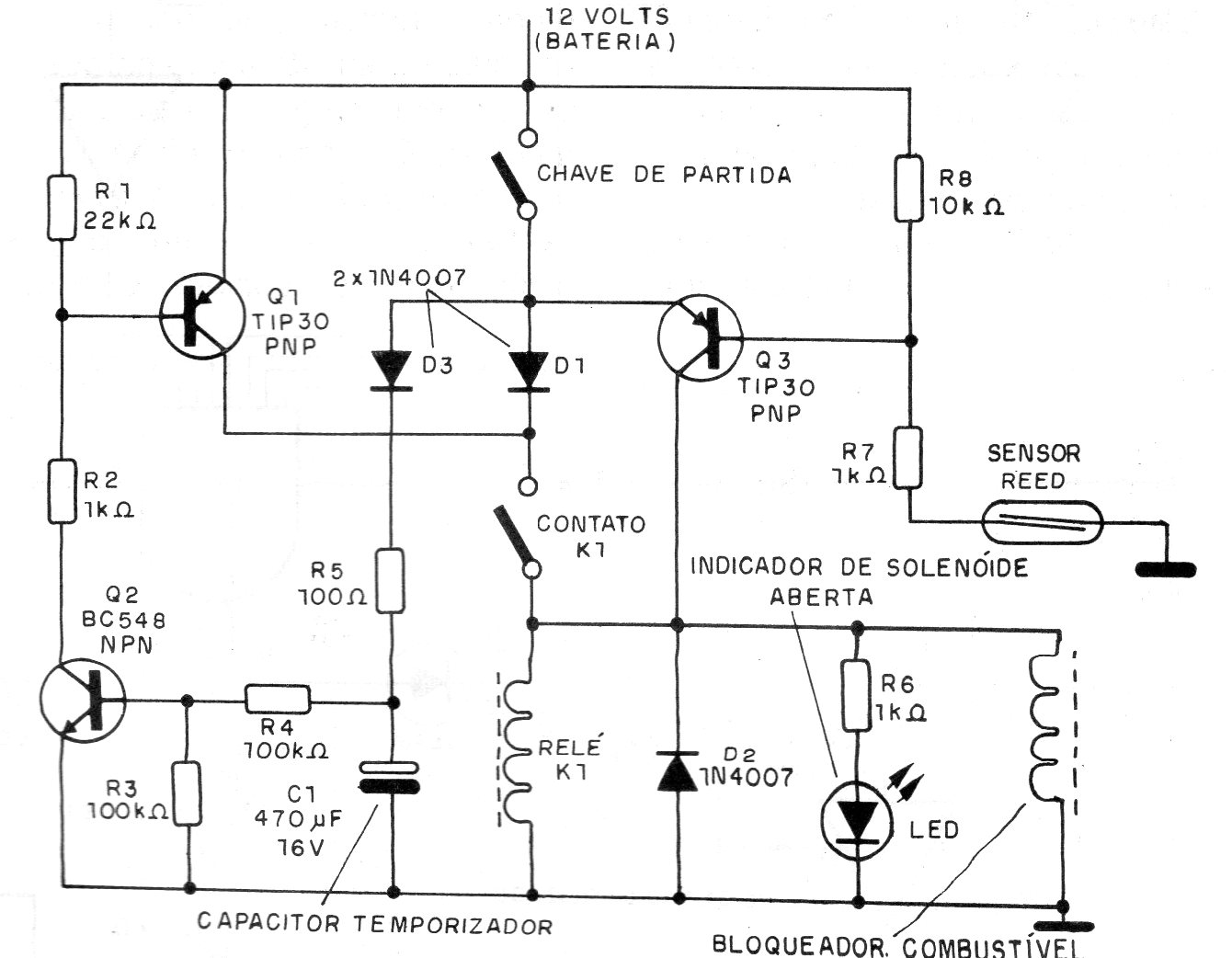

This circuit was found in a 1995 documentation, consisting of a car protection system that blocks the fuel for a certain time. To start it is necessary to activate the reed switch before releasing the start. This occurs for an interval of 2 minutes, when the circuit then deactivates.
