6-Sequential Sounder Siren (CB18001E)

Details
Written by: Newton C. Braga

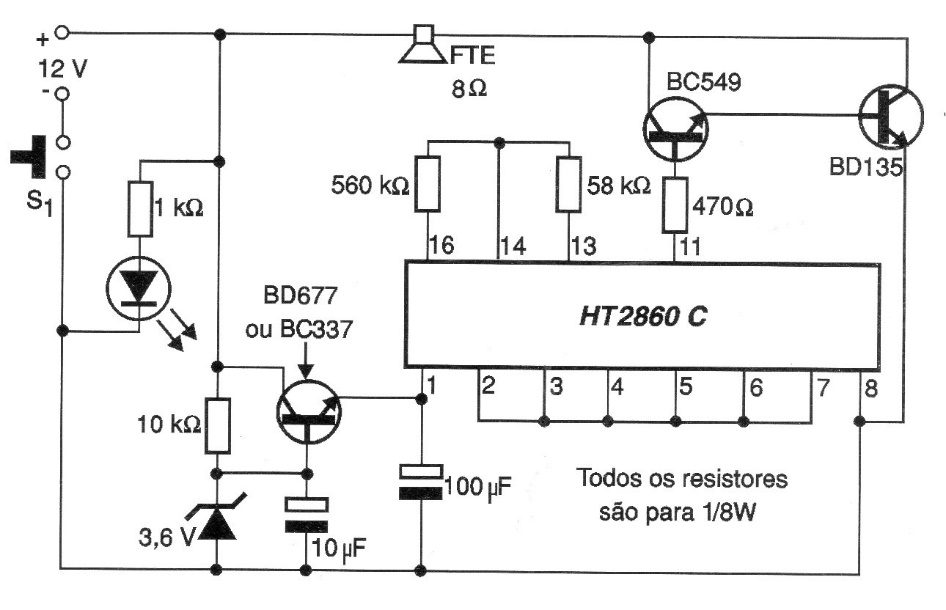

This 2002 documentation circuit is suitable for automotive use. The circuit is based on an integrated that is not common today and has a medium power stage with a BD135.




| Clique na imagem para ampliar |
