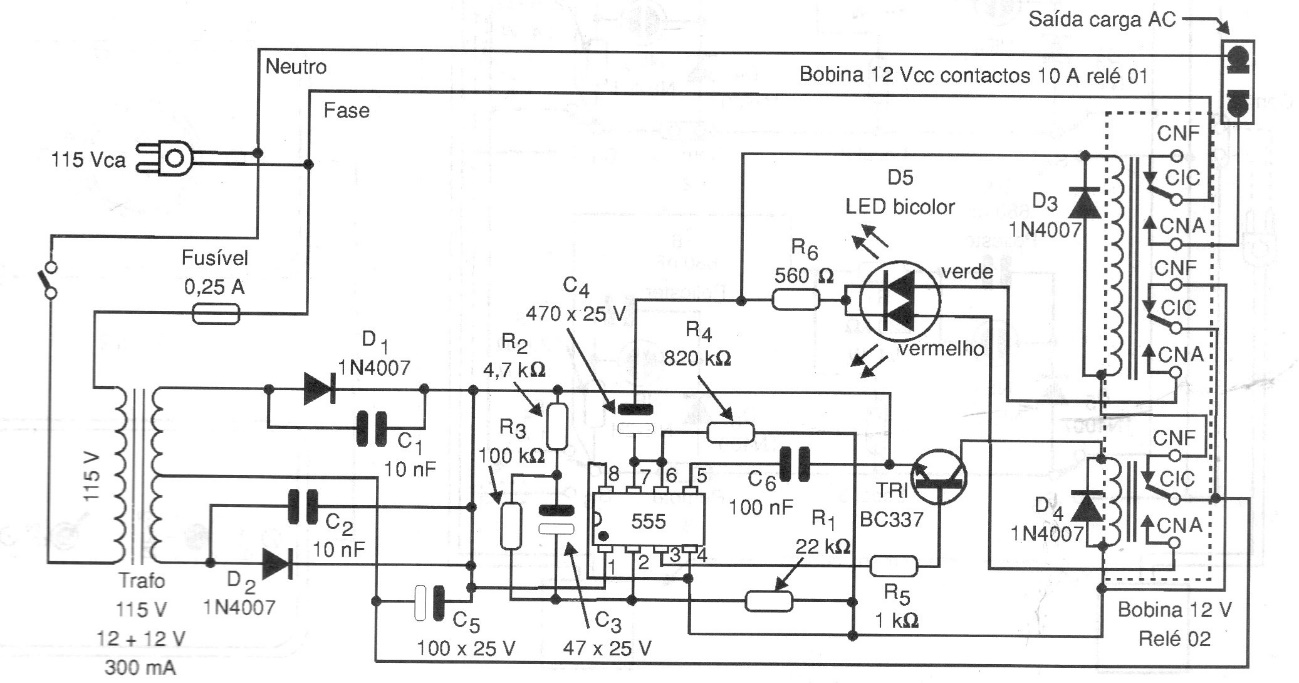

This circuit deactivates devices powered by the power grid so that when the power returns, they do not receive transients that occur at this moment. The circuit is based on a 555 and a relay that controls the supply of the device that must be protected.
| Clique na imagem para ampliar |
