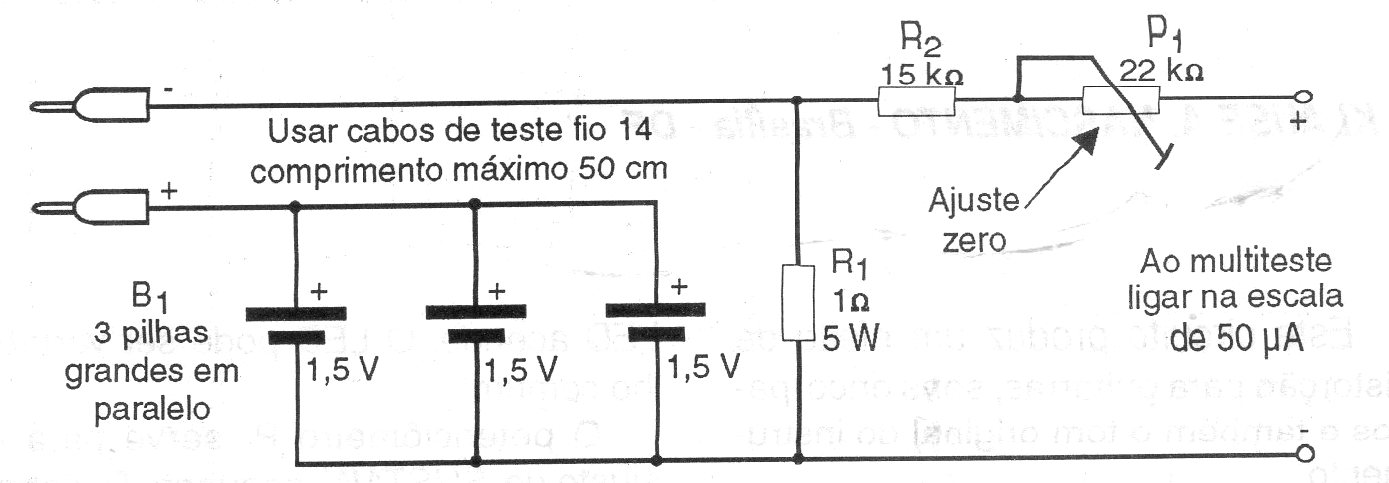

The purpose of this circuit is to measure very low resistances, using the lowest current range of an analog multimeter. The circuit is from 1997 and uses a little recommended configuration which is the parallel connection of batteries. In this circuit, a reading of 15 uA is equivalent to 1.5 ohm.
