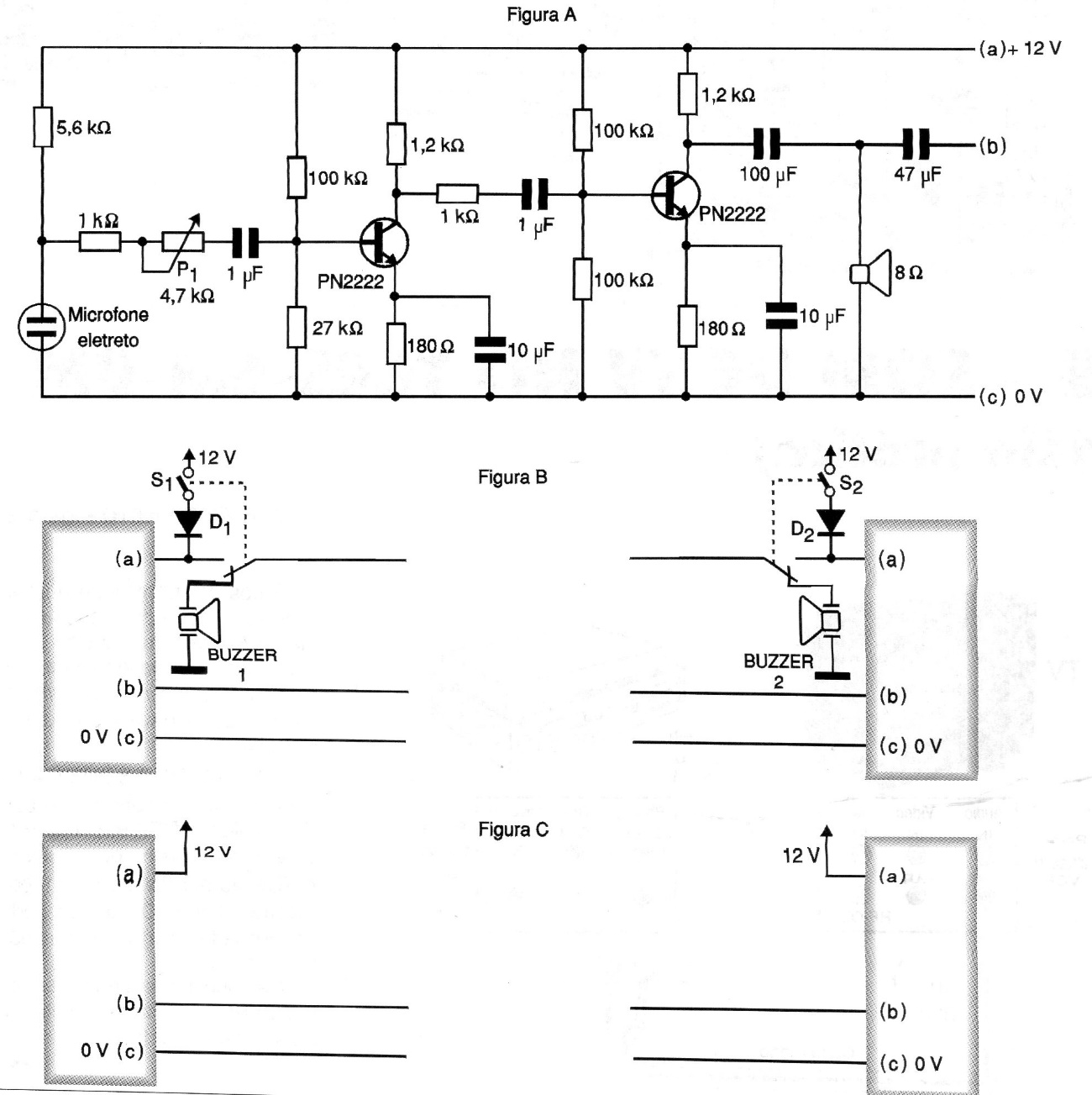

This simple transistorized intercom circuit was found in a 2000 documentation. It can be powered by a simple source and the cables can be extended a distance of a few tens of meters. P1 is a gain adjustment.
| Clique na imagem para ampliar |
Transistorized Intercom (CB17173E)
- Details
- Written by: Newton C. Braga
