Fuzz effect (CB17975E)

Details
Written by: Newton C. Braga

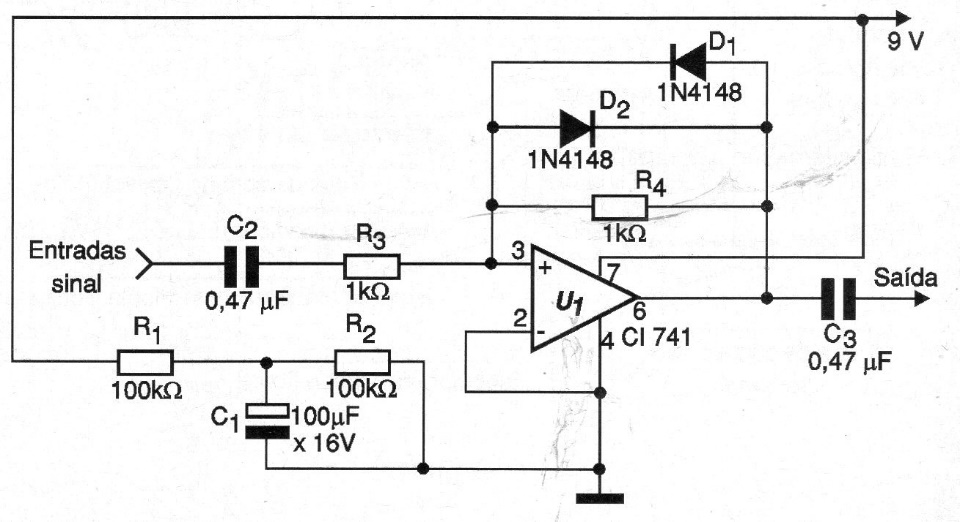

This guitar effect circuit was found in a 2002 documentation. The circuit can be powered by a 9 V battery as it has low consumption. The connections of the input and output audio signals must be shielded.
