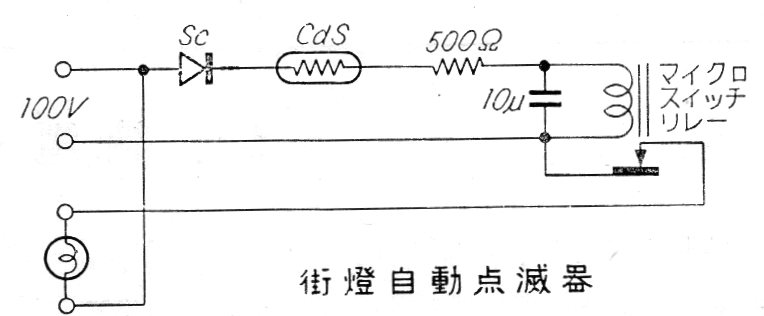

This circuit uses a LDR as a sensor and activates a relay directly from the mains voltage. The relay is of the sensitive type for alternating current and the diode can be a 1N4004 or 1N4007 depending on the power network. The circuit is from a Japanese publication from the 60s.
