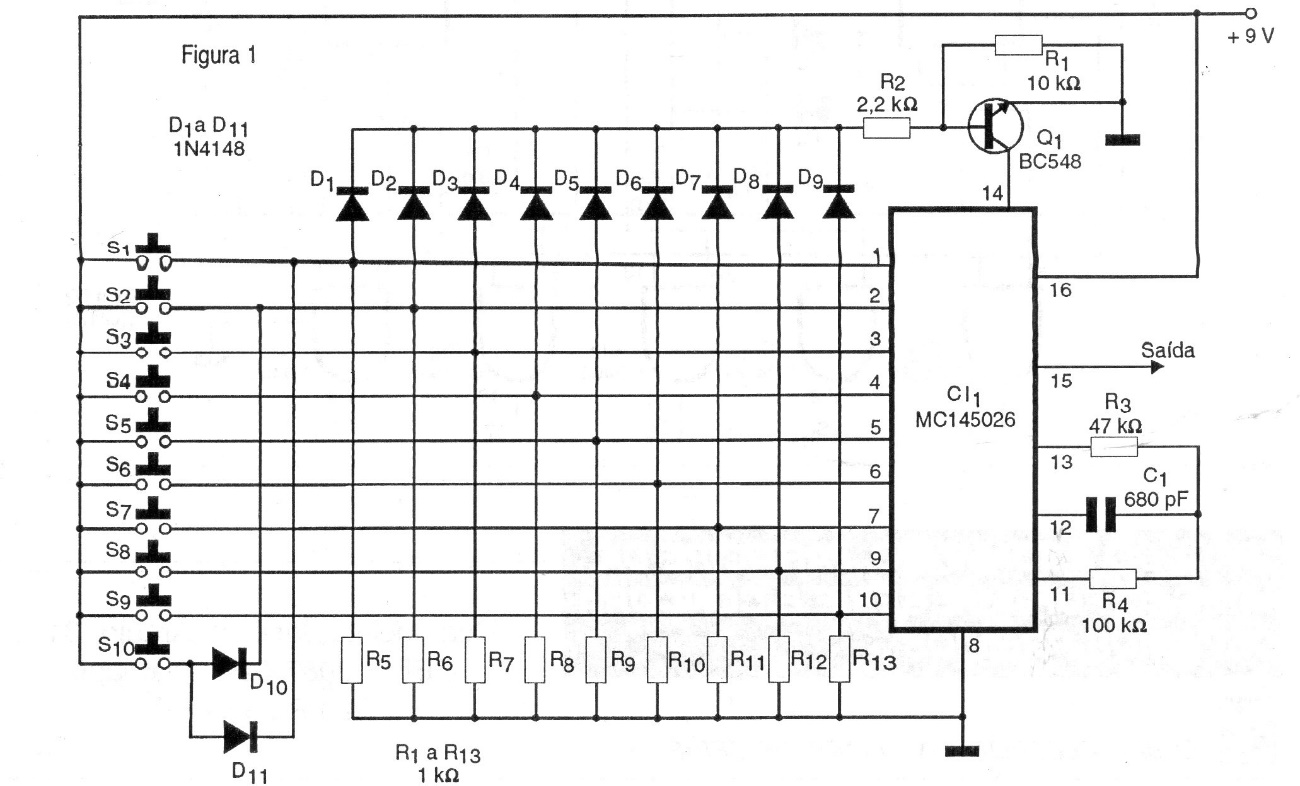

This circuit, from a 1997 documentation, is based on a pair of Motorola MC14026 dedicated integrated circuits on the transmitter and MC15028 on the receiver given on the next circuit (CB17015E). The circuit is for 10 channels and is powered by a voltage of 9 V. The output can be applied to an infrared link on the radio transmitter.
| Clique na imagem para ampliar |
