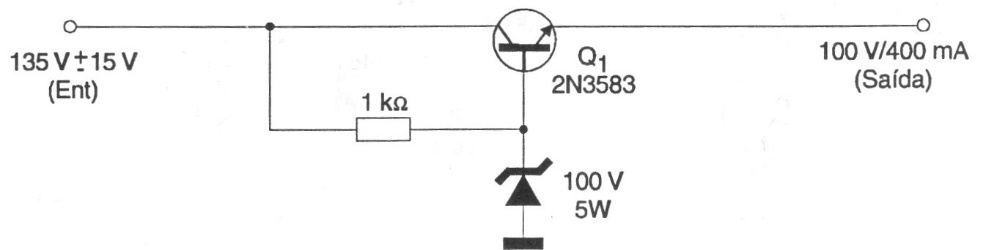

The transistor used in this circuit is uncommon today, but equivalents can be used. The zener determines the output voltage and can be changed. The transistor used must have a at least 175 V Vceo and a collector current of at least 2 A. The resistor must be wired with at least 2 W.
