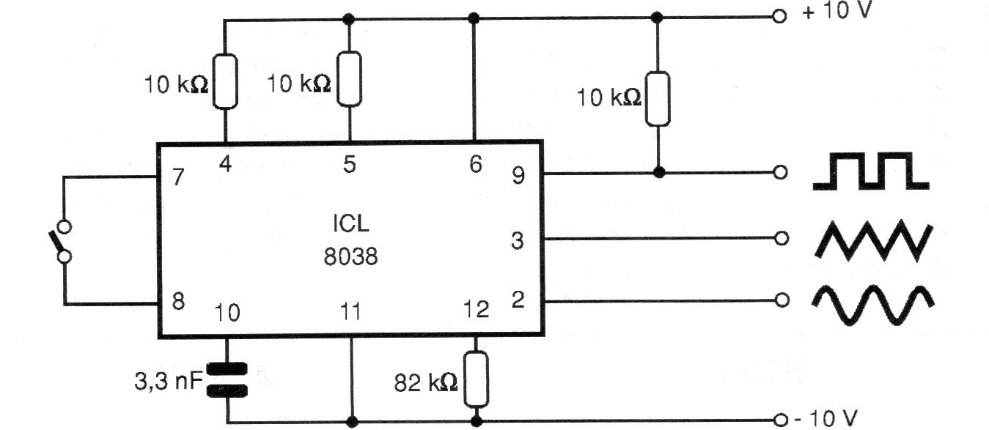

This circuit appears elsewhere on this site. Although the 8038 is not an easily obtainable component, it results in an excellent function generator with 3 waveforms of available outputs and frequencies from 0.001 Hz to 100 kHz.
| Clique na imagem para ampliar |
