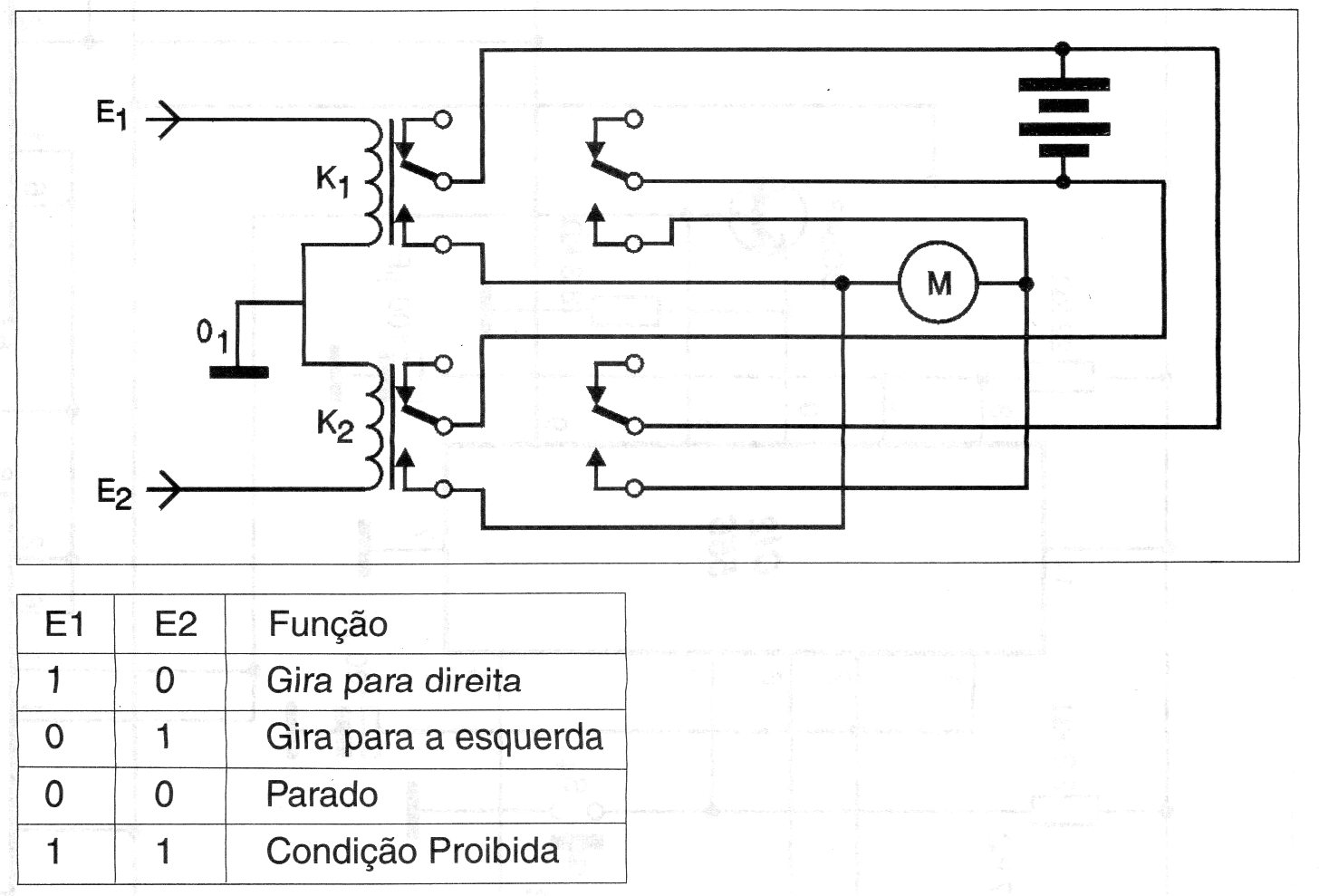

This circuit can be used to control the movement of a robot, acting on the motor. Two motors must be used for similar controls, with two control logic inputs. The circuit can be easily adapted to operate as a microcontroller shield using sensitive 5V relays.
| Clique na imagem para ampliar |
