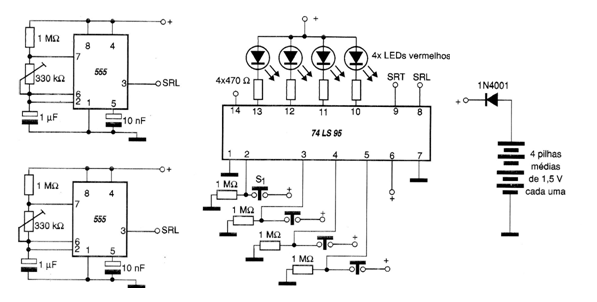

This circuit is from a simple TTL sequential system using 4 LEDs. The experimental circuit must be powered by 5 V or 4 batteries with a diode. Clocks of two types are given together with the diagram.
Programmable Sequential TTL (CB18059E)
