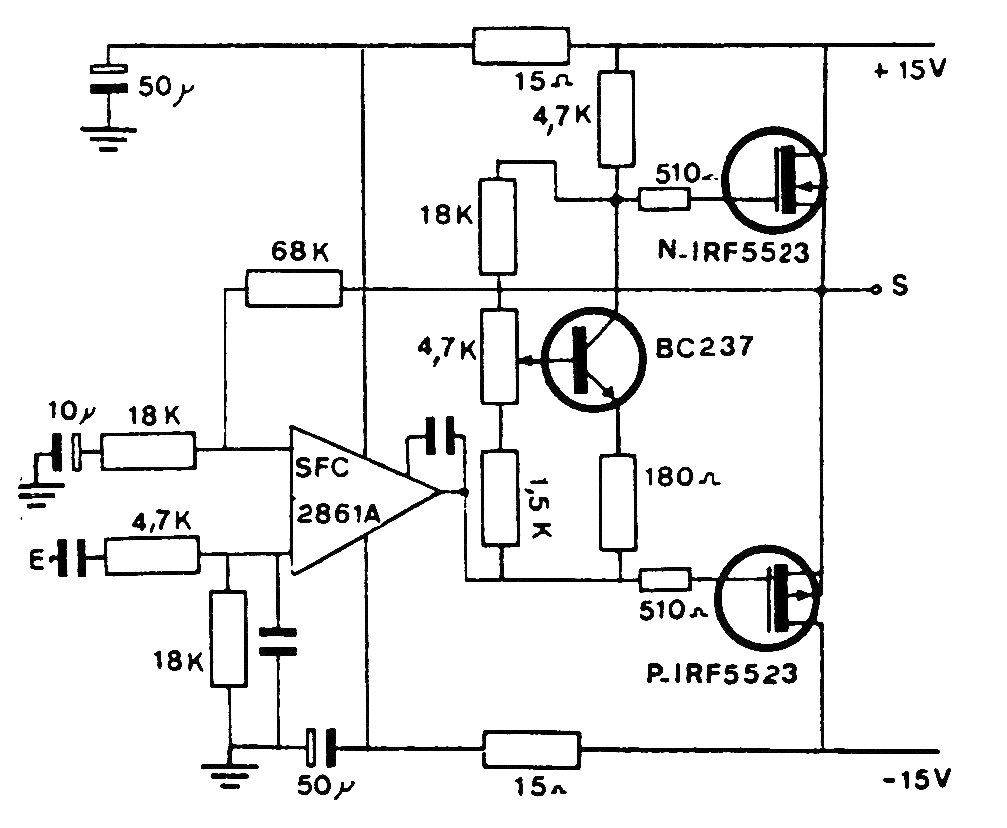

This amplifier operates with a current amplifier for audio distribution lines. The power MOSFET can be replaced by equivalents and the operational amplifier can also be replaced. The circuit is suitable for 50-ohm cables, in which case 50-ohm resistors in series with the output must be used.
