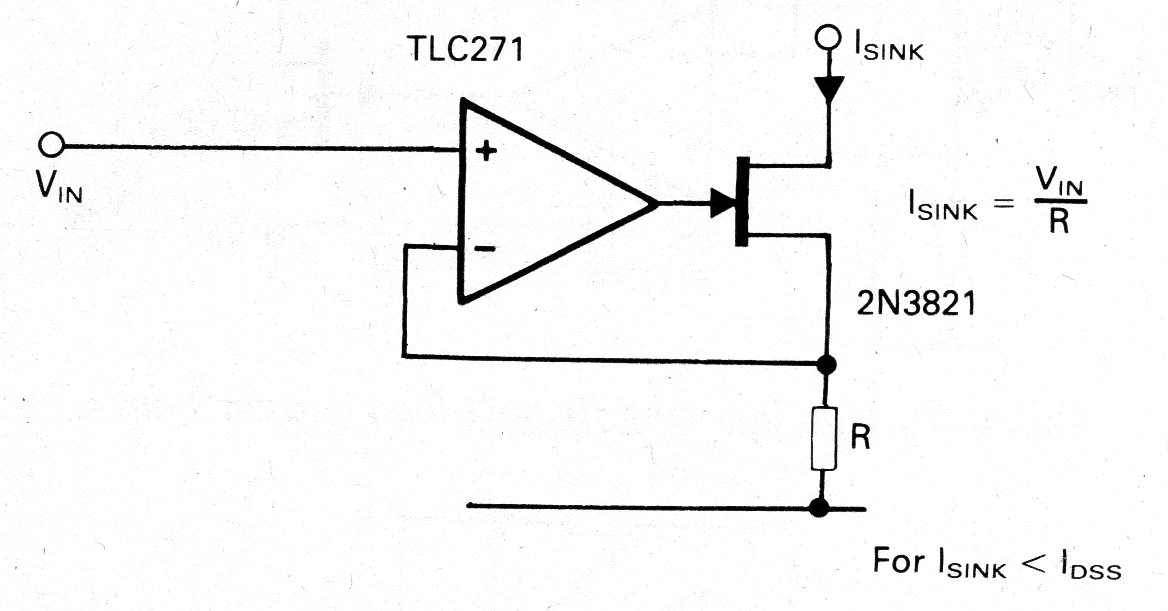

This circuit was found in a Texas Instruments linear application manual. The circuit uses an operational amplifier with JFET and a junction FET. The current is given by the formula at the output.
| Clique na imagem para ampliar |
Precision Current Drain (CB19039E)
- Details
- Written by: Newton C. Braga
