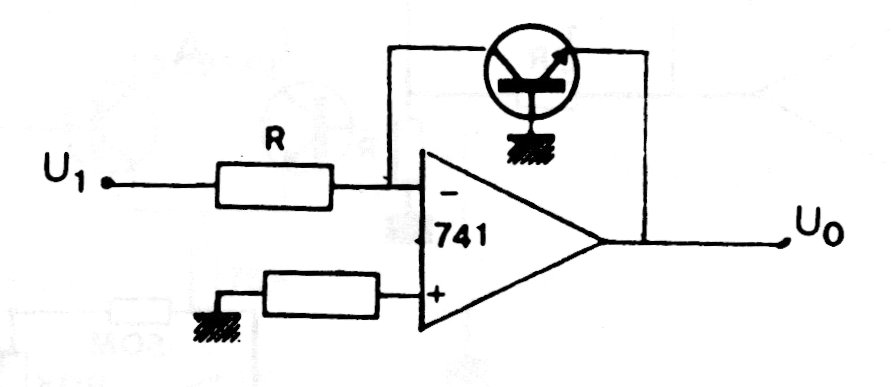

The logarithmic response of this amplifier with operational is given by the presence of the transistor in the feedback circuit. Any general-purpose transistor can be used, and the operational one can also be of a more modern type with symmetrical power according to the application.
