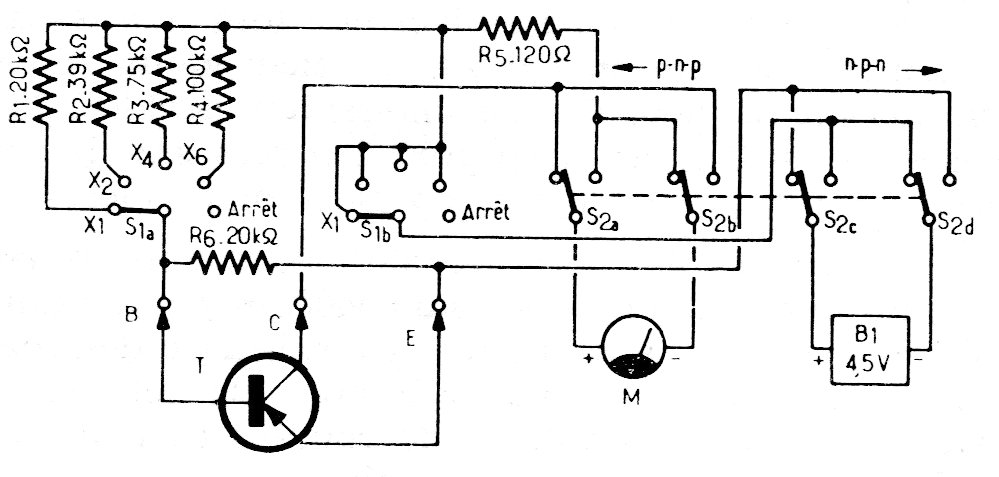

This circuit has test gain ranges from 50 to 300 with the use of appropriate resistors. The circuit is from a European publication from the 1980s and serves for both NPN and PNP transistors. The current scale of a multimeter can be used in place of the indicator instrument.
