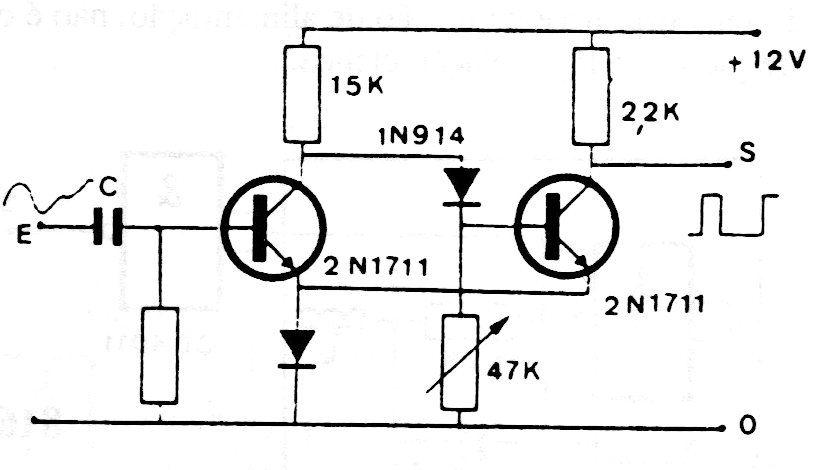

This Schmitt trigger configuration was found in documentation from the 1980s and can be implemented with more modern equivalent transistors. R and C depend on the trip signal and the circuit has a trigger setting.
| Clique na imagem para ampliar |
Schmitt Trigger II (CB19546E)
- Details
- Written by: Newton C. Braga
