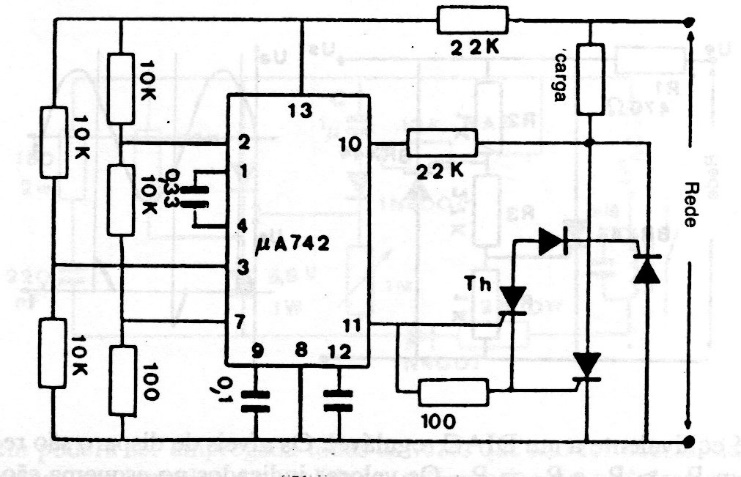

The integrated circuit used in this old configuration is not common today. In it we have the way to control two SCRs in a control circuit connected to the AC network.
| Clique na imagem para ampliar |
Integrated SCR Command (CB19335E)
- Details
- Written by: Newton C. Braga
