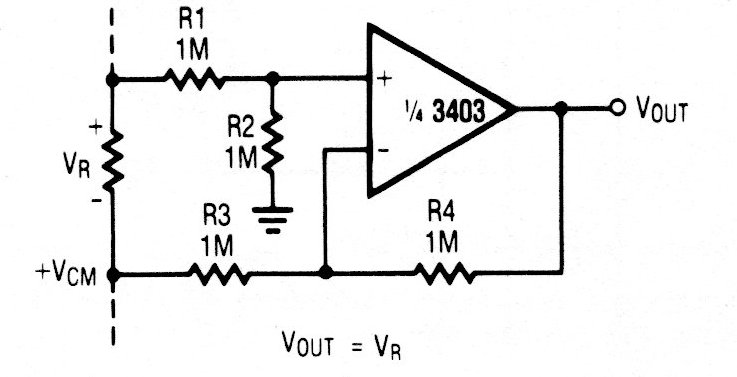

The operational amplifier used in this circuit is not common today. The circuit has an input referenced to earth using a symmetrical source. The circuit can be implemented with modern equivalent operational amplifiers.
