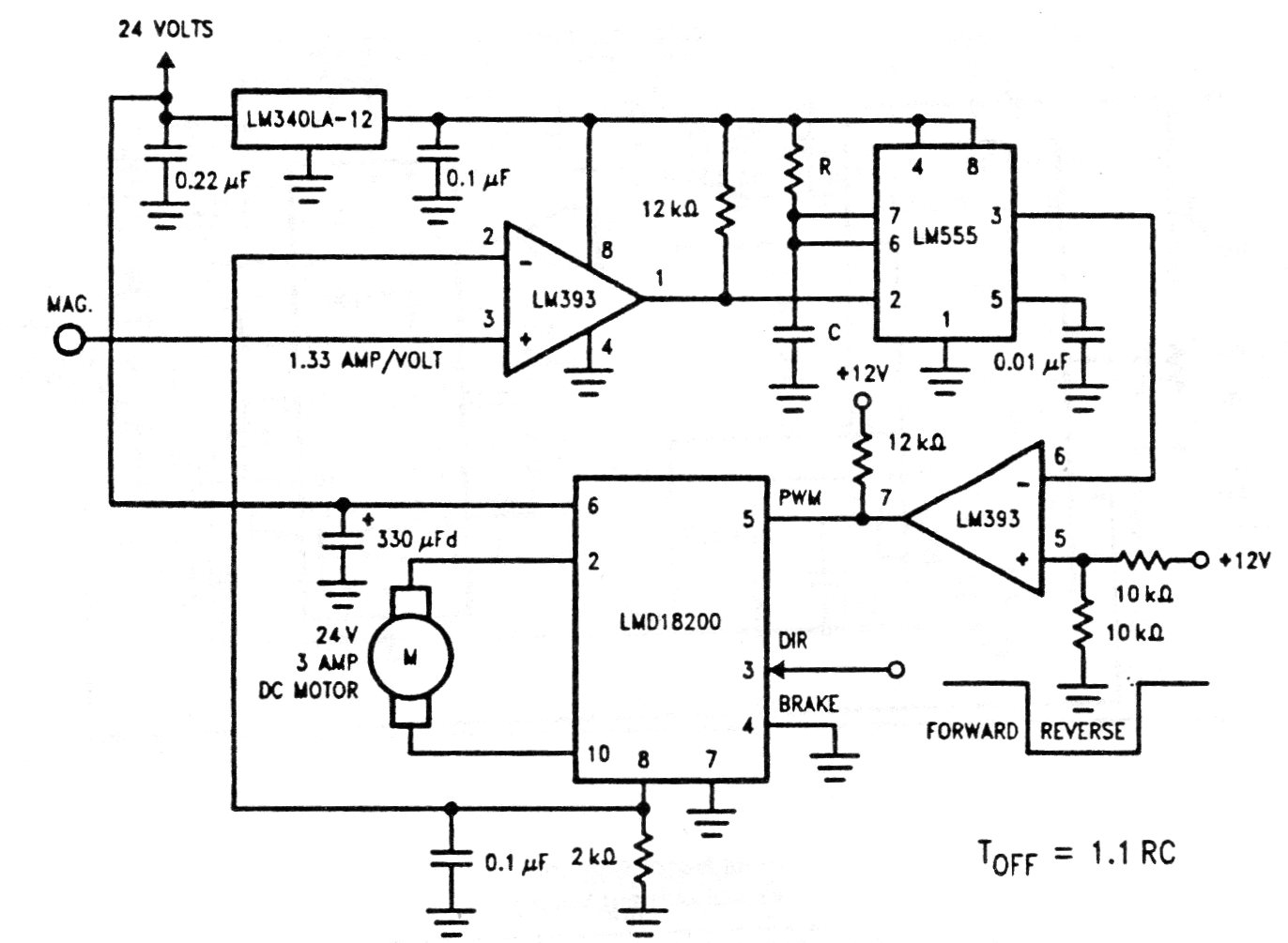

The integrated circuit used in this application is an H bridge from 3 A to 55 V. It is not very common today, but it is an excellent solution for motor control. The circuit can be used as a shield for microcontrollers.
| Clique na imagem para ampliar |
