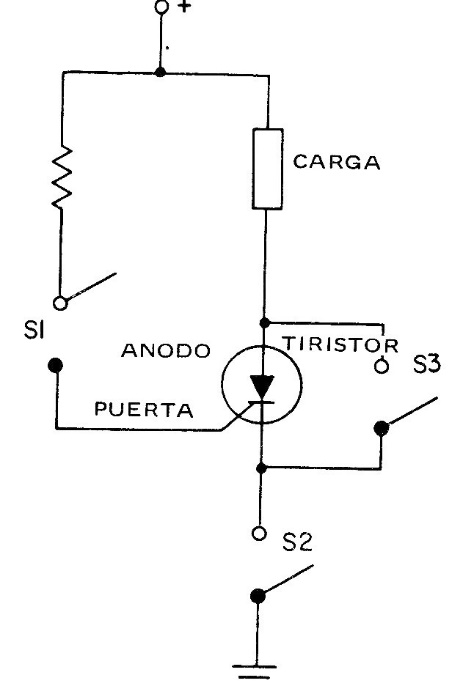

The diagram, obtained in an old European documentation, shows the ways to trigger and to shut down an SCR in an engine control or other load. The circuit is for direct current systems and eventually a parallel protection must be added if the load is inductive.
