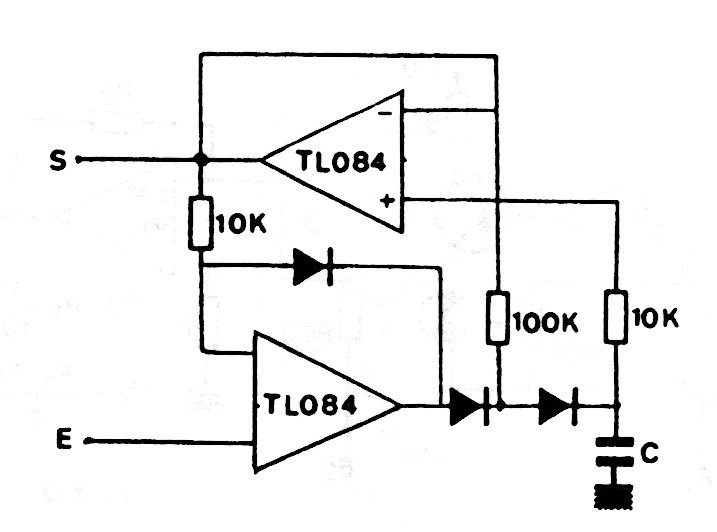

This circuit is a little more elaborate with the previous one (CB19402E). The operational amplifier is still common, and the diodes are for general use. The font must be symmetrical. The inputs are for reference and for the signal.
| Clique na imagem para ampliar |
