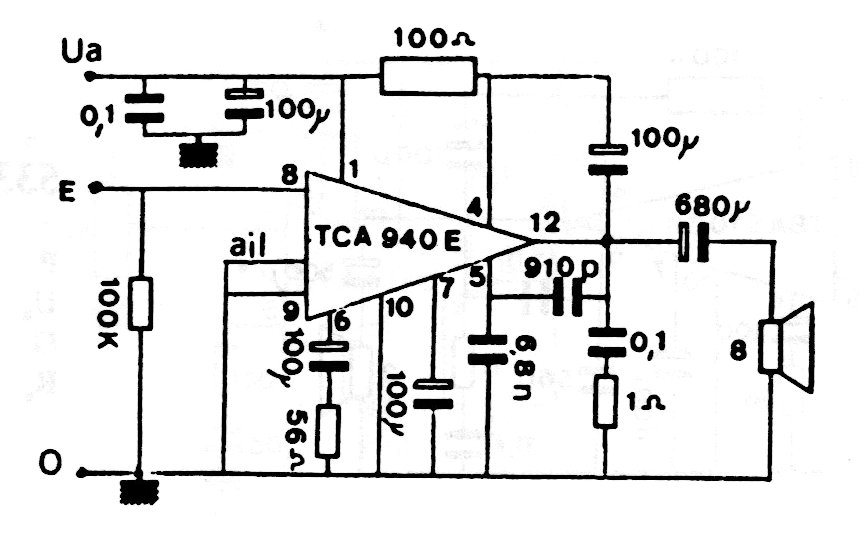

The integrated circuit used in this amplifier is not very common today. We found this circuit in a documentation from the 90's. The circuit must be powered with a voltage of 20 V and has a gain of 37dB. The input resistance is 100 k ohms.
