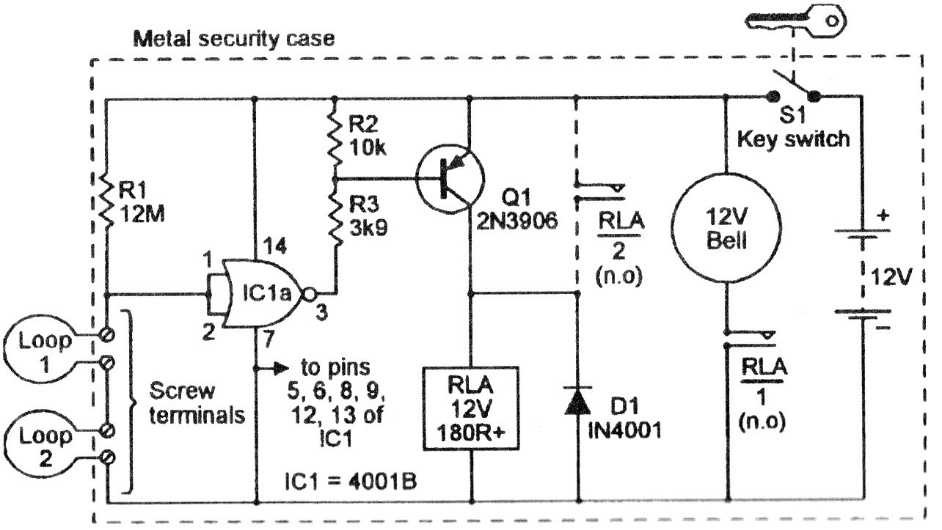

Unlike the previous circuit (CB19224E), this circuit locks after firing, even if the sensor loops are redone. The circuit is from American documentation and the transistor can be the BC558. The relay is 50 or 100 mA depending on whether the supply voltage is 6 or 12 V.
| Clique na imagem para ampliar |
