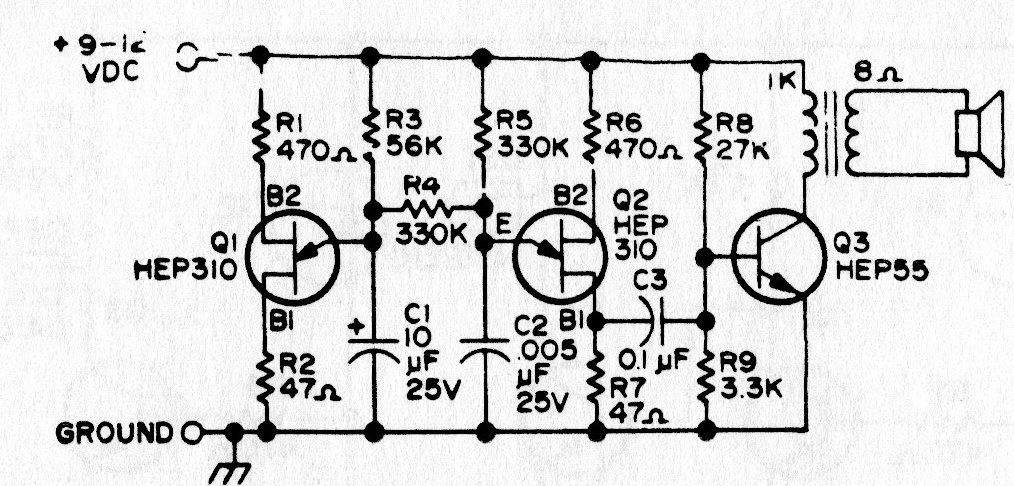

The transistors in this circuit, found in an American publication in 1975, can be replaced by modern equivalents. The transformer is of the type found in amplifiers and transistor radios with at least 1 W of output.
| Clique na imagem para ampliar |
Alarm Siren (CB19985E)
- Details
- Written by: Newton C. Braga
