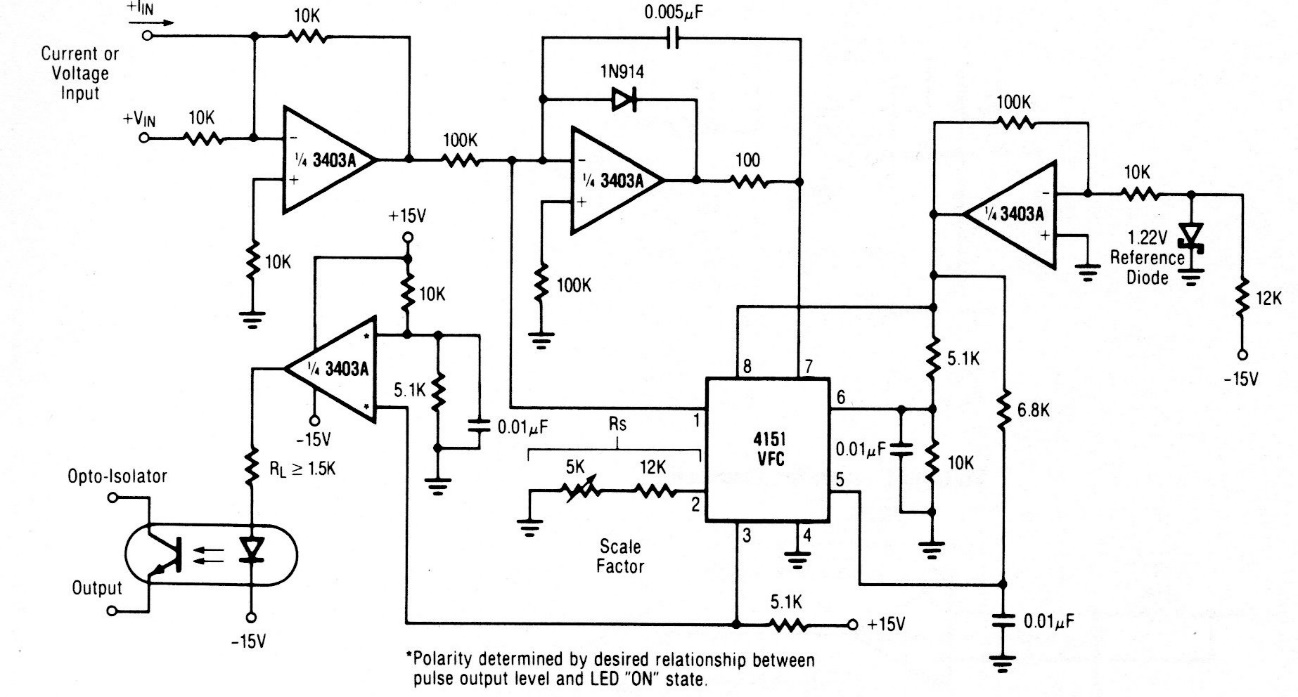

We found this circuit in a Motorola manual. The circuit employs operationals that are uncommon today but can be implemented with equivalents. By using an optical coupler at the input, it can be used as a shield.
| Clique na imagem para ampliar |
Voltage to Precision Frequency Converter (CB19910E)
- Details
- Written by: Newton C. Braga
