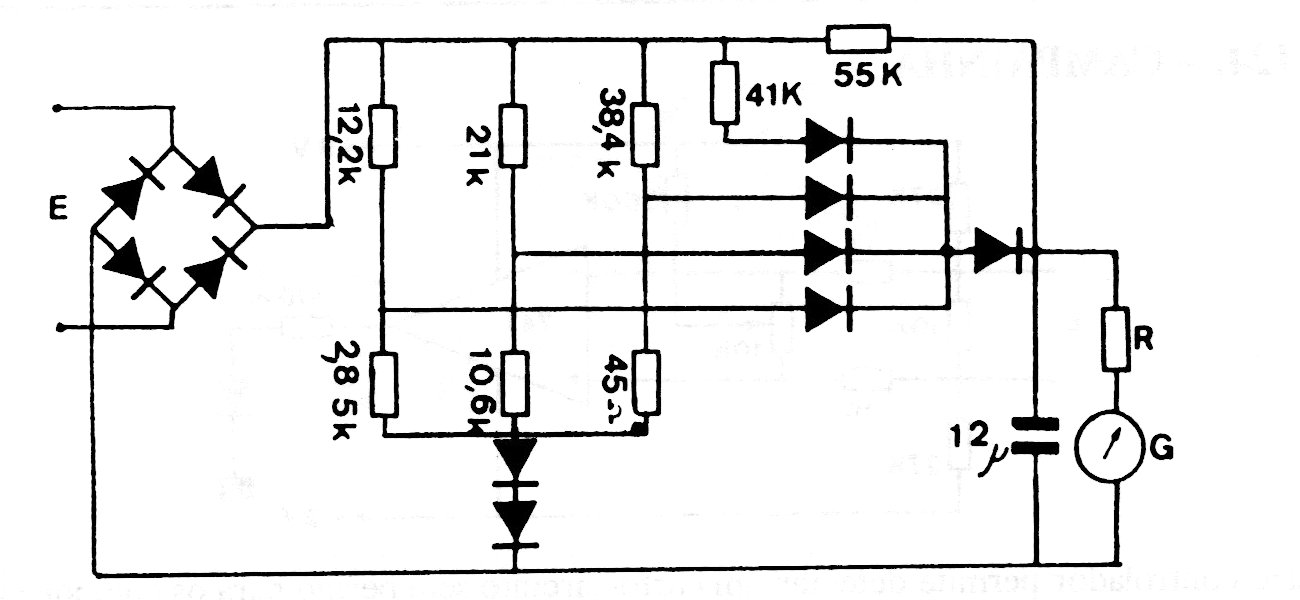

This circuit shows on the instrument the effective value or RMS of the input voltage. The diodes are general-purpose types, and the bridge diodes have voltage according to the one to be measured. The circuit is from old documentation.
