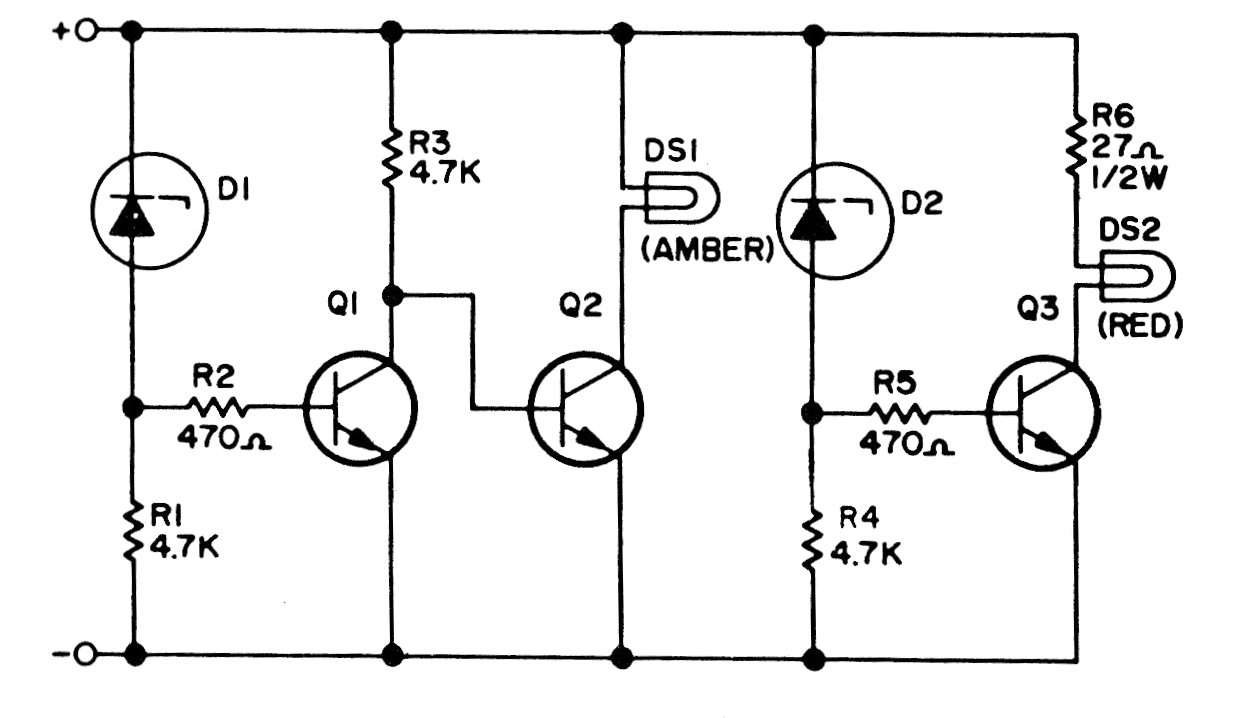

We found this circuit in a 1975 documentation. It monitors the voltage of an automotive system, indicating when it leaves the ranges determined by the zener diodes. LEDs with series resistors can be used instead of indicator lamps.
