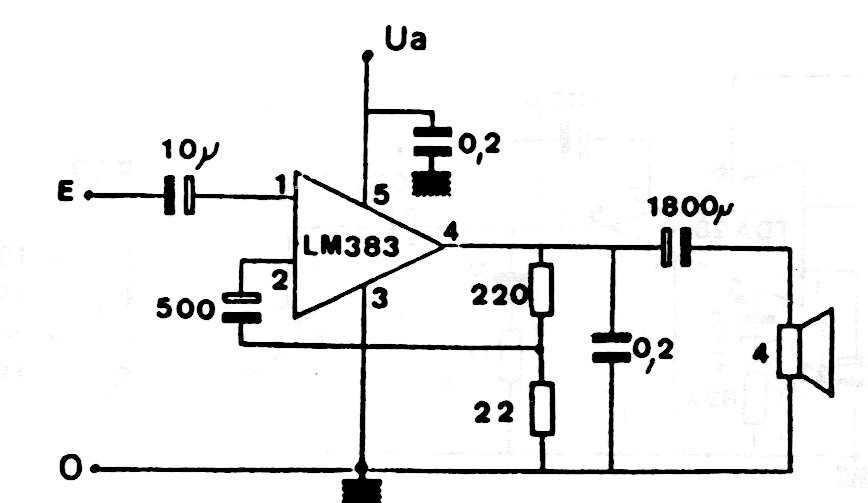

We found this good audio amplifier that must be powered with a voltage up to 14 V in a circuit manual from the 90's. The circuit gain is 70dB and the input resistance is 100 k. The circuit is for automotive use.
| Clique na imagem para ampliar |
8 W amplifier LM383 (CB19159E)
- Details
- Written by: Newton C. Braga
