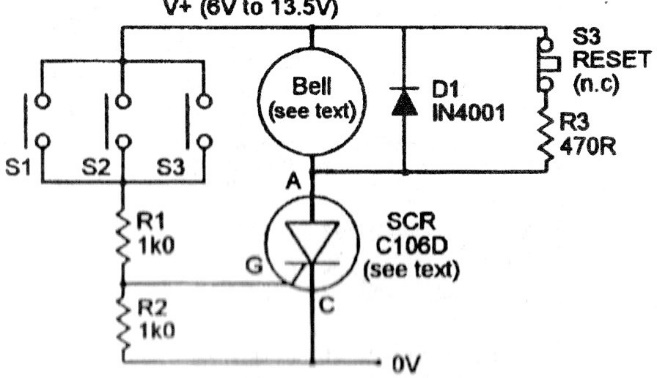

This circuit uses NO sensors and was found in an American publication in the 90s. The supply must be made with 2 V more than the voltage of the warning system, to compensate for the voltage drop in the SCR while driving.
