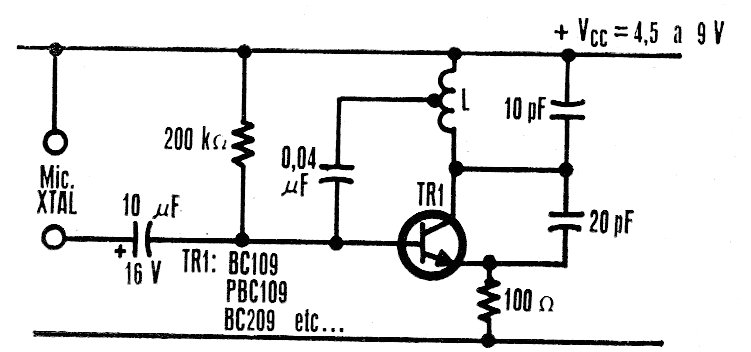

Low power RF transistors such as the BF494 or BF495 and even those in the BC series can oscillate well in this circuit of old documentation. The coil has 2 + 2 turns of wire 26 or 28 in the form of 1 cm in diameter without core. Low-value capacitors must be ceramic, and the antenna must be 10 to 30 cm in diameter.
