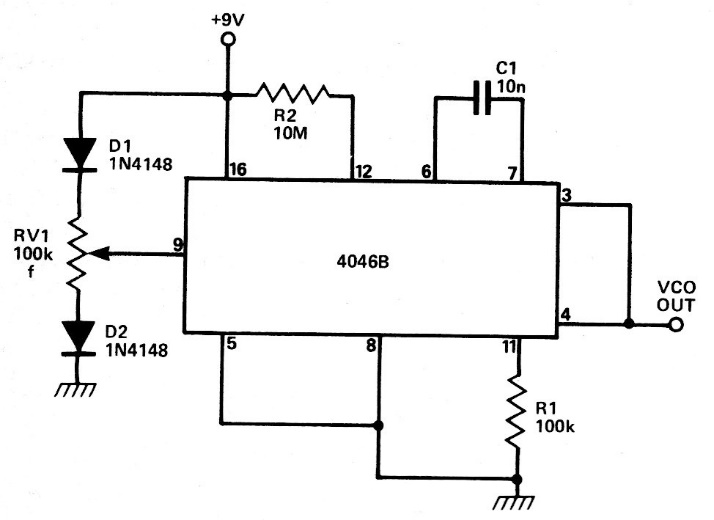

The CMOS 4046 integrated circuit is not very common today, consisting of a very efficient PLL for many low and medium frequency applications. The circuit presented is from documentation translated from the 1960s, and can generate rectangular signals from zero, which is achieved with the addition of diodes.
| Clique na imagem para ampliar |
