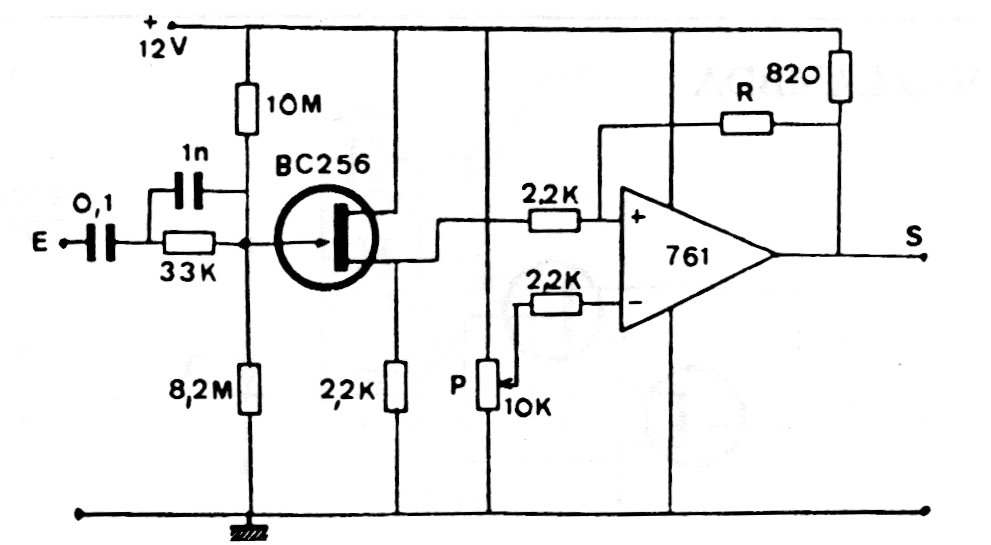

The trigger point of this trigger can be set to P. The field effect transistor can be the BF245 and the operational one admits more modern equivalents since the circuit is from 80's documentation. The power supply does not need to be symmetrical and the voltage can be changed depending on the operational.
