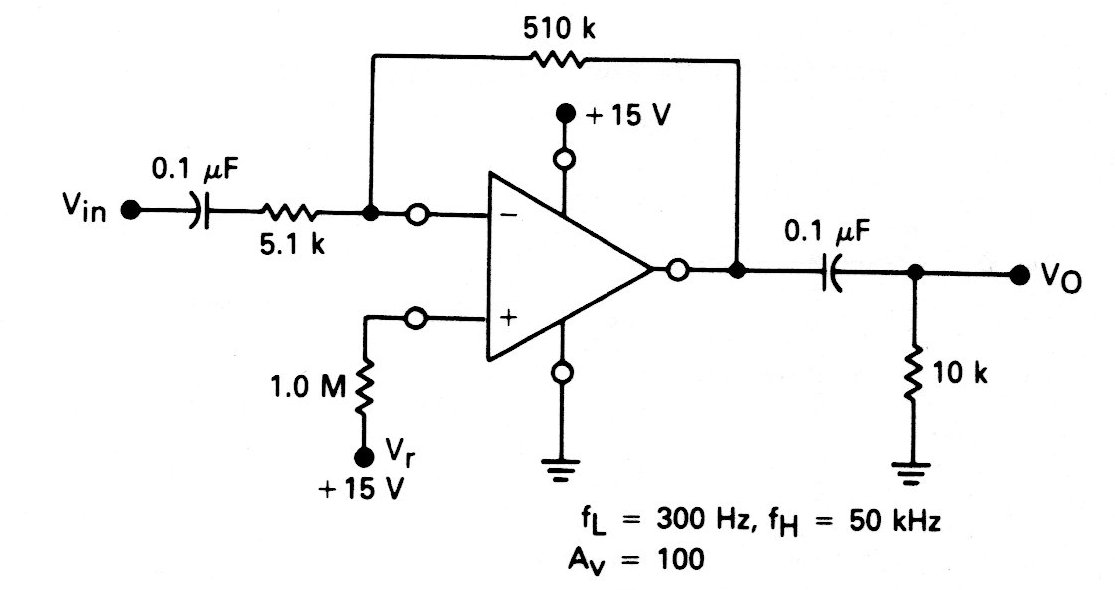

Gain 100 Inverter Amplifier (CB19845E)

Details
Written by: Newton C. Braga



This configuration is from a Motorola circuit manual. It appears elsewhere in this section and can be implemented with virtually any type of operational. The supply voltage depends on the operating mode used.




| Clique na imagem para ampliar |
