Tunnel Diode Transmitter (CB19425E)

Details
Written by: Newton C. Braga

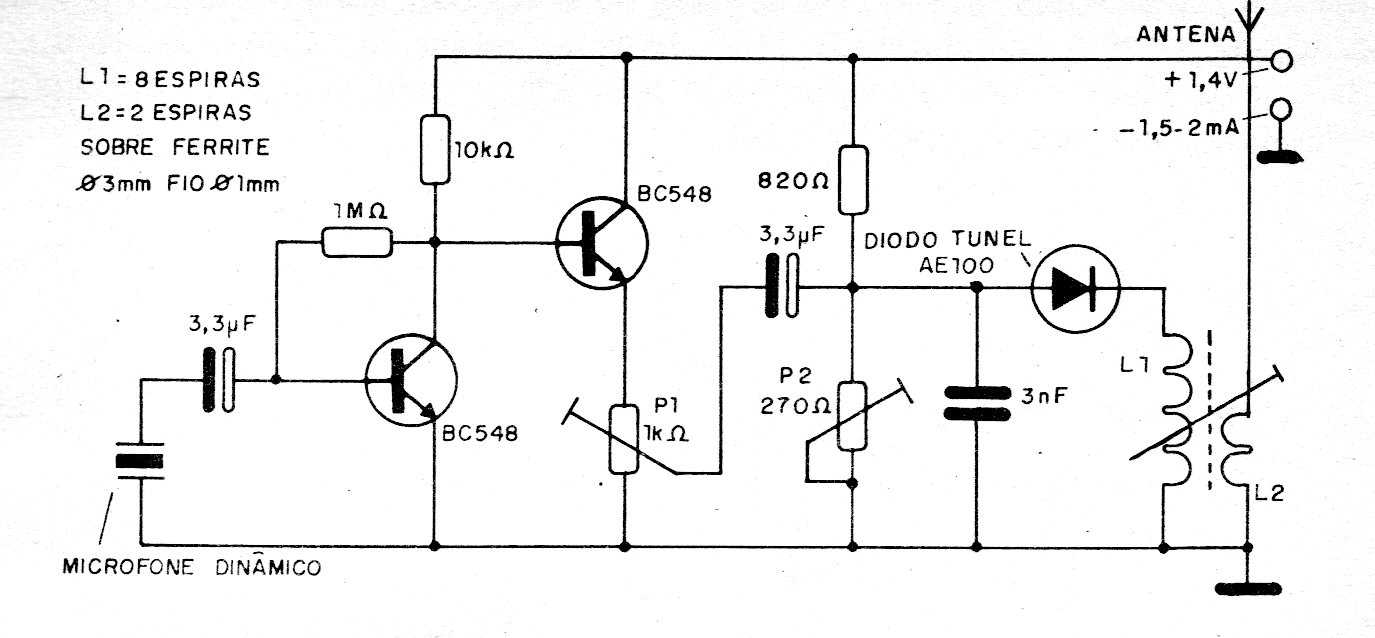

This low power circuit for the FM band was found in a spy book from the 90s. The tunnel diode is not an easy component to obtain and the power can be supplied with a single button cell.
