Sampling and Holding (CB19700E)

Details
Written by: Newton C. Braga

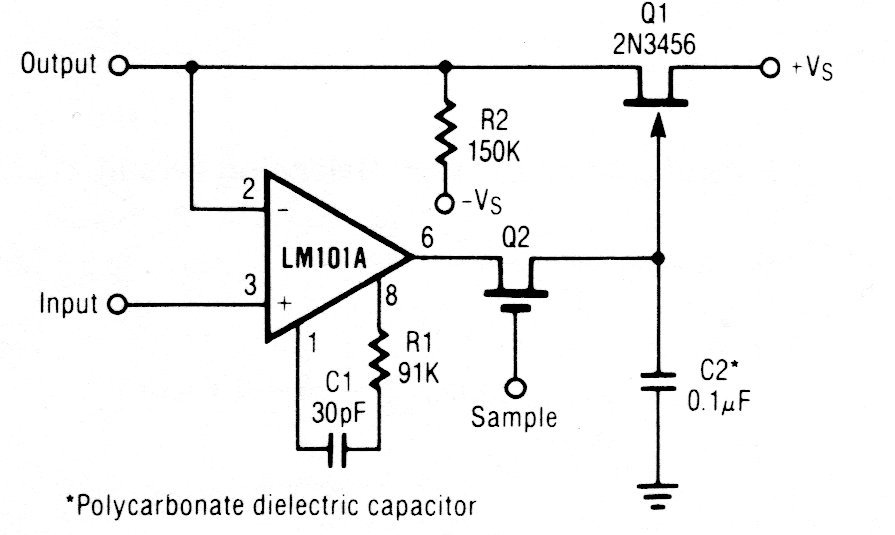

This circuit with low-slip characteristics uses an operating system that is not very common today. The circuit can be designed with more modern operational and equivalent FETs.




| Clique na imagem para ampliar |
