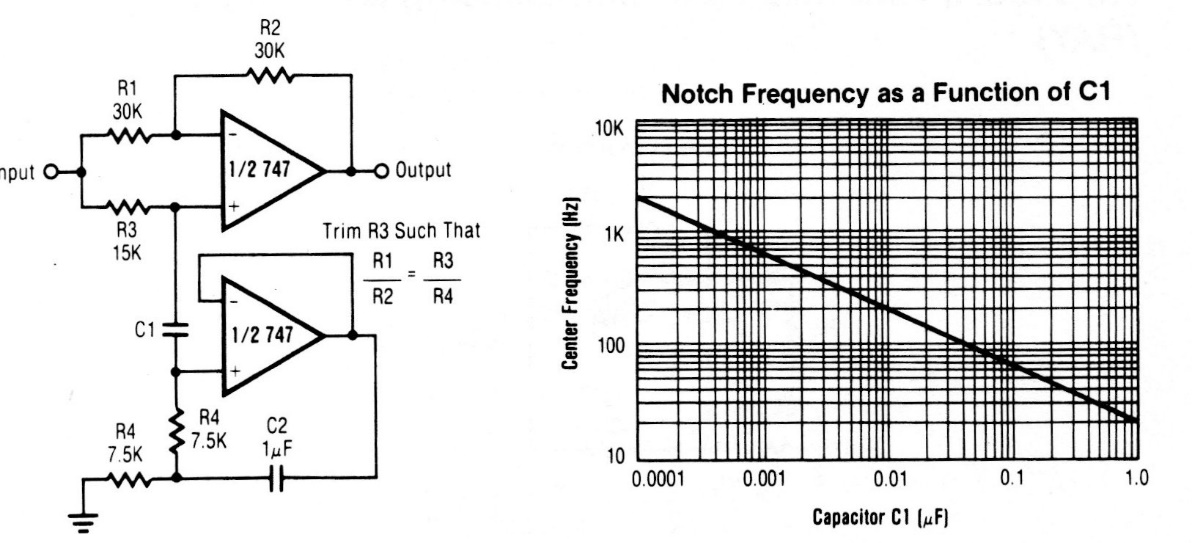

The 747 is an old operational amplifier, but the configuration applies to modern operatives. In this circuit the 747 works like a spinner and in the graph next to the diagram we have the characteristics of the circuit depending on the capacitor.
