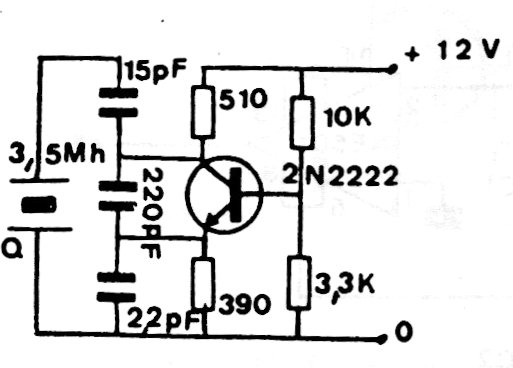

This is a typical quartz crystal oscillator for the 3.5 MHz frequency (80-meter range) used in radio transmitters. The circuit is from an old publication and the capacitors used must be ceramic.
3.5 MHz Crystal Oscillator (CB19353E)
- Details
- Written by: Newton C. Braga
