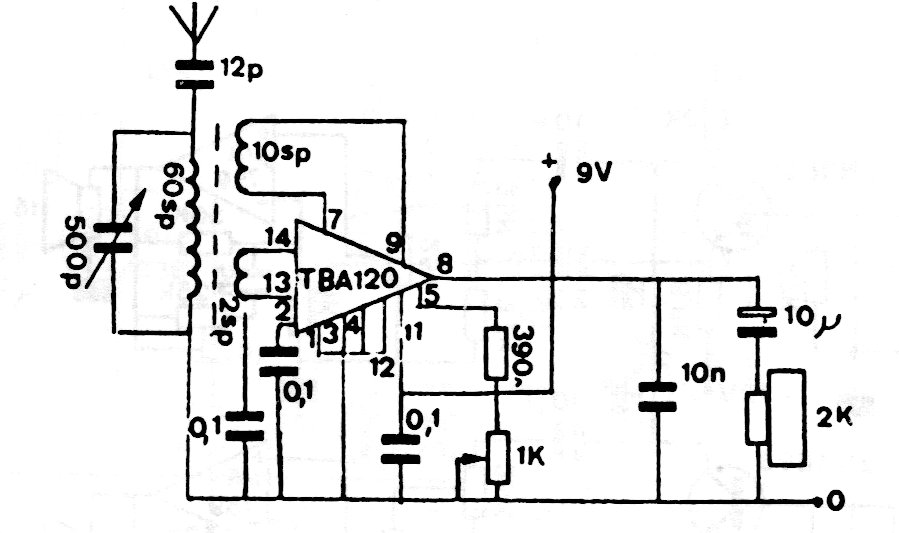

This receiver is from European documentation from the 90s. The integrated circuit is uncommon, and the coil turns are indicated, and must be wrapped in a ferrite rod. The circuit is powered by a source or batteries and the winding direction of the coils must be observed.
